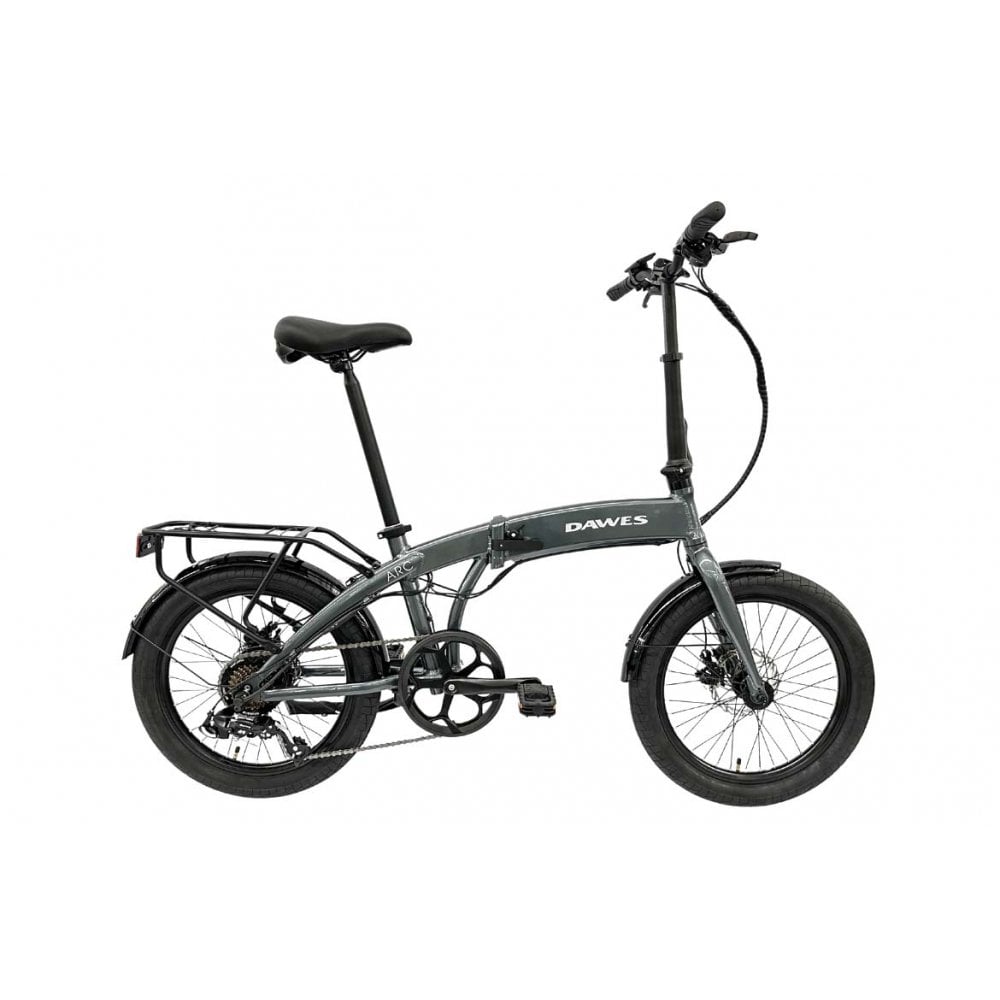

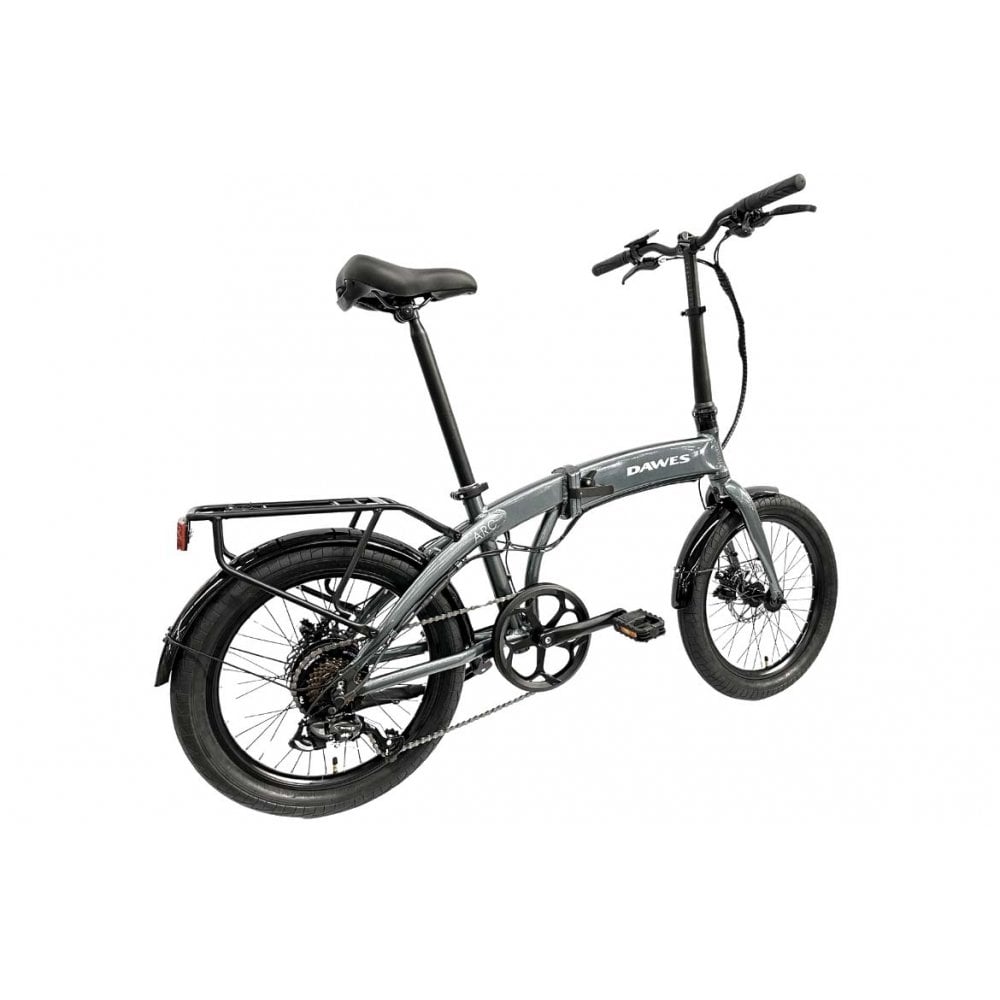

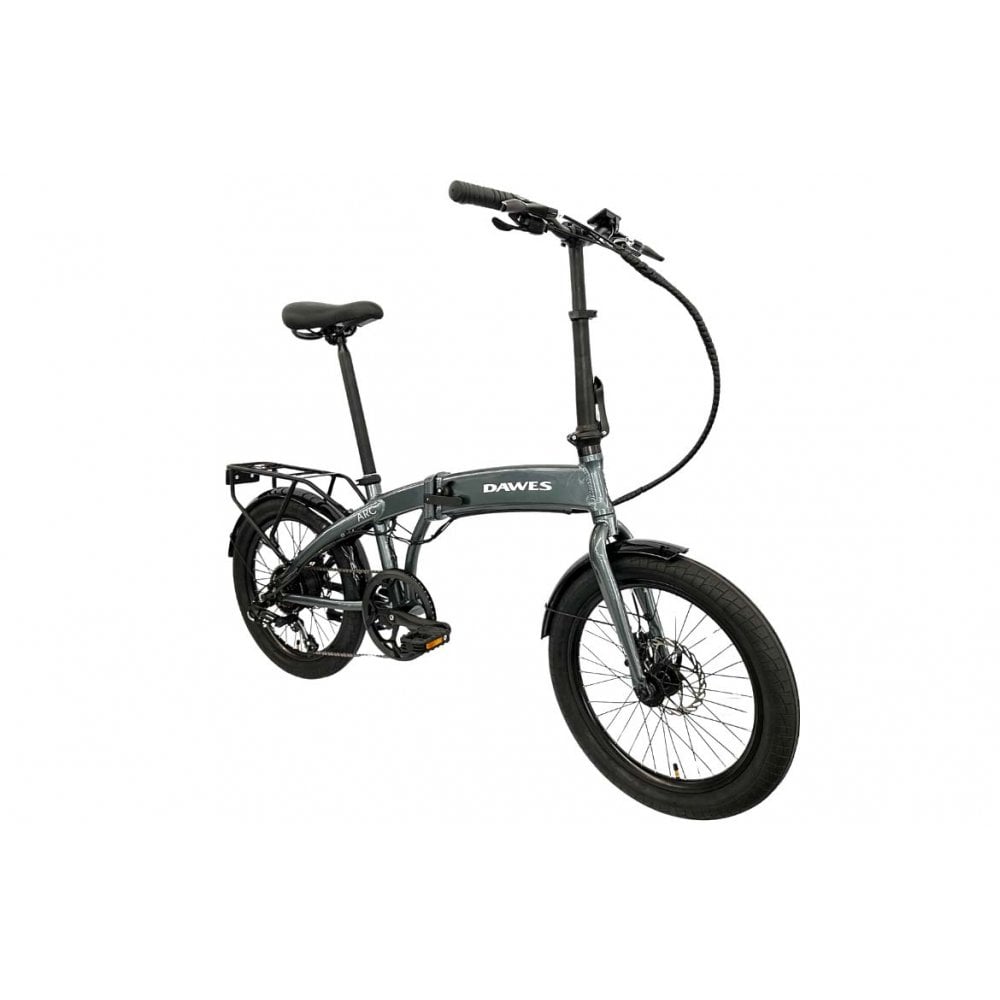

Dawes Arc Electric Folding Bike
The Dawes Arc Electric Folding Bike is an excellent choice for urban commuters and travelers. It combines the convenience of a folding design with the power of an electric motor, ensuring you get to your destination quickly and effortlessly.
This bike features a 238Wh (36V 6.6Ah) integrated battery, providing a maximum range of up to 22 miles (35 km) on a full charge, with a recharge time of just 5 hours. The powerful Bafang 36V 250W motor delivers 32Nm of torque, making it easy to tackle city streets and hills.
Riders can choose from three levels of power assist via the handlebar-mounted LED display, which also includes a walk assist mode. The bike is equipped with mechanical disc brakes, providing reliable stopping power in various conditions.

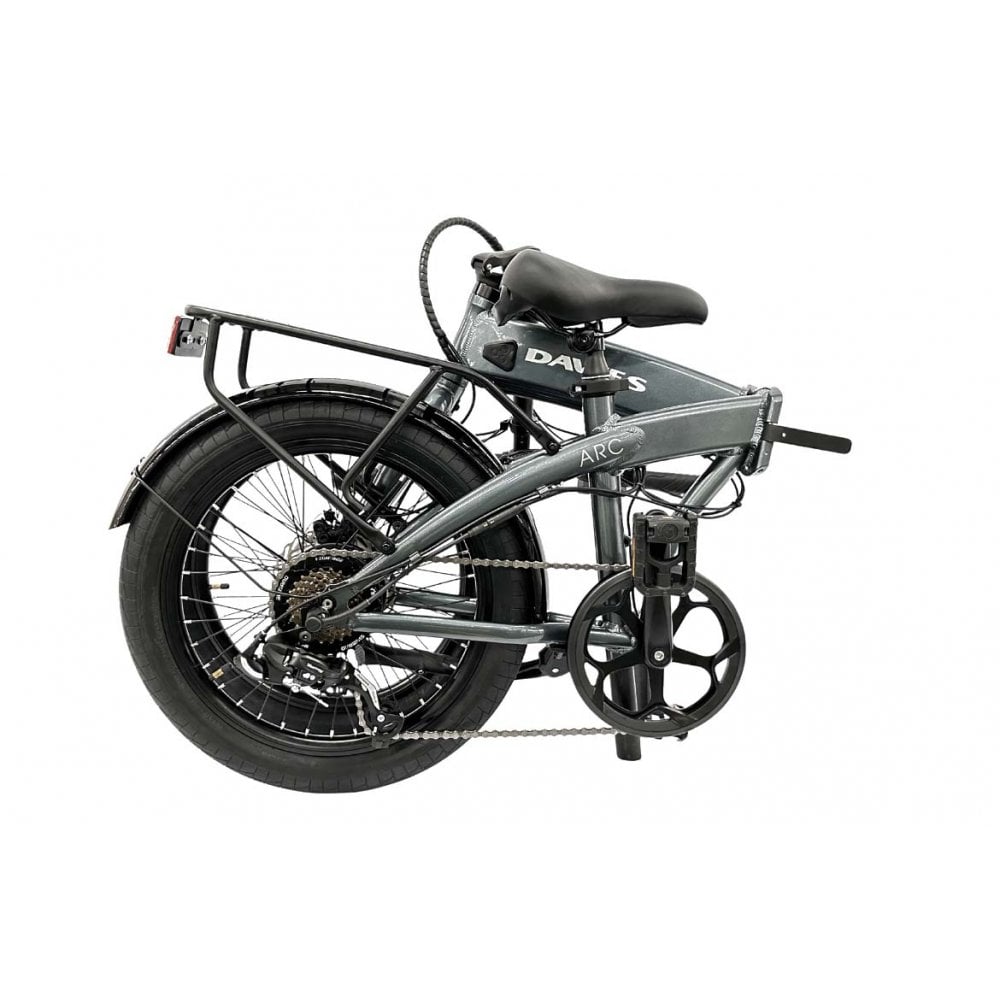

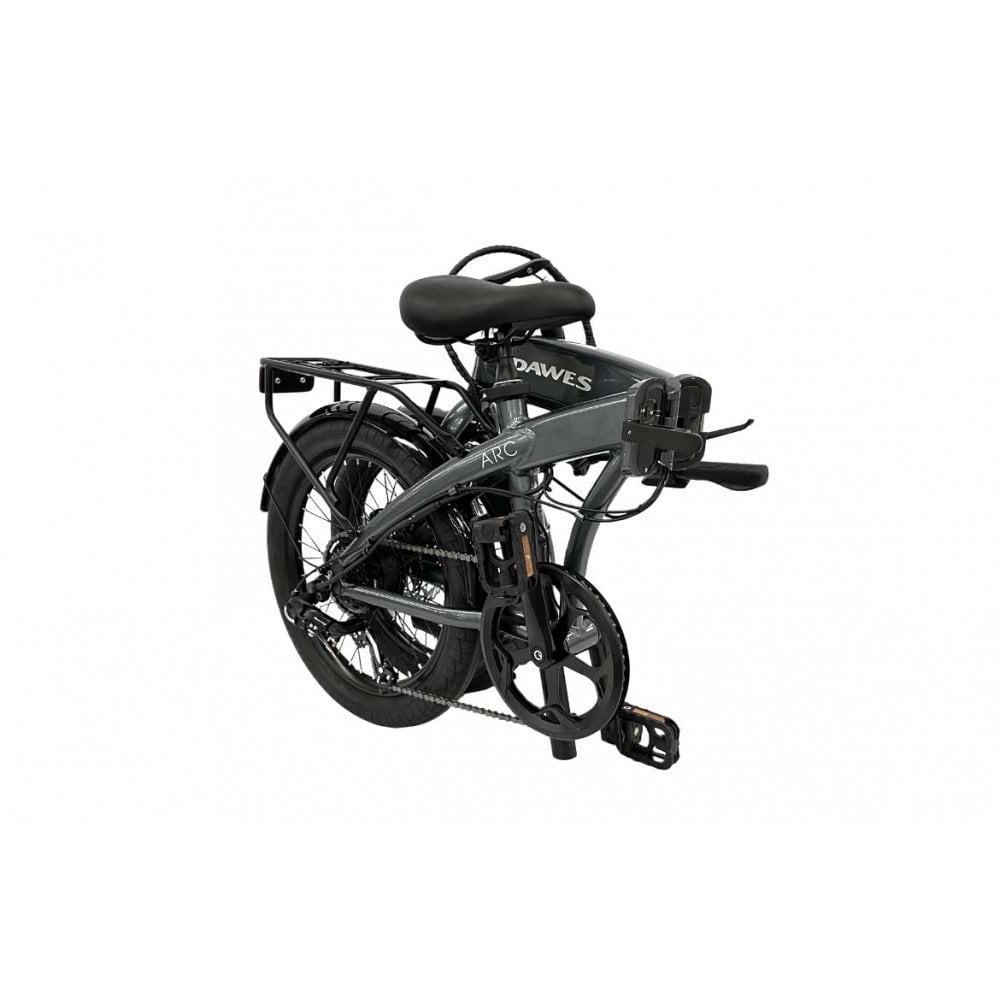

For a comfortable and adaptable ride, the Dawes Arc is equipped with Shimano RevoShift 6-speed gear components, ergonomic grips, and a comfort saddle. The bike also includes full-length mudguards, an adjustable kickstand, and folding pedals for easy storage and transport.
Technical Specifications
| Maximum Range | 22 miles / 35 km |
| Recharge Time | 5 hours |
| Maximum Assisted Speed | 15.5 mph / 25 km/h |
| Motor | Bafang 36V 250W motor, 32Nm torque |
| Battery | 238Wh (36V 6.6Ah), Integrated with USB charging function |
| Charger | 3 pin UK plug |
| Display | Handlebar mounted LED display, 3 level power assist & walk assist |
| Speed Sensor | 12 point pedal sensor |
| Frame | Alloy folding frame with integrated battery |
| Frame Size | 13" (Folding) |
| Fork | Hi-tensile steel |
| Headset | 1" threaded |
| Handlebar | Flat, 600mm wide |
| Stem | Alloy telescopic folding stem |
| Grips | Black ergo comfort grips |
| Gear Shifters | Shimano RevoShift, 6 speed |
| Rear Derailleur | Shimano RD-TZ500, 6 speed |
| Chain | KMC Z7 |
| Cassette/Freewheel | Shimano 6 speed freewheel, 14-28T |
| Chainset | 170mm crank, 52T chainring |
| Number of Gears | 6 |
| Bottom Bracket | Cartridge type, 122.5mm |
| Pedals | Folding pedals for improved storage |
| Brakes | Mechanical disc brakes, 160mm rotors |
| Brake Levers | Alloy lever including motor cut-off switch |
| Front Hub | 36 hole, Alloy nutted |
| Rear Hub | Bafang 36V 250W motor |
| Rims | 20" double wall alloy rims with CNC sidewall |
| Tyres | 20 x 1.75" city tyres |
| Saddle | Comfort saddle |
| Seat Post | 34mm x 55mm |
| Mudguards | Full length, black steel |
| Kickstand | Alloy centre mount |
The Dawes Arc Electric Folding Bike is perfect for commuting and urban adventures. Its compact folding design, reliable motor, and user-friendly features make it an ideal choice for those seeking a convenient and efficient mode of transportation.
