Dawes

Dawes - Spire 1.0 Crossbar Electric Hybrid Bike - 2025

Dawes - Spire 1.0 Crossbar Electric Hybrid Bike - 2025

Regular price £1,599.99 GBP
Regular price Sale price £1,599.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Product Code: 690517-1
Size

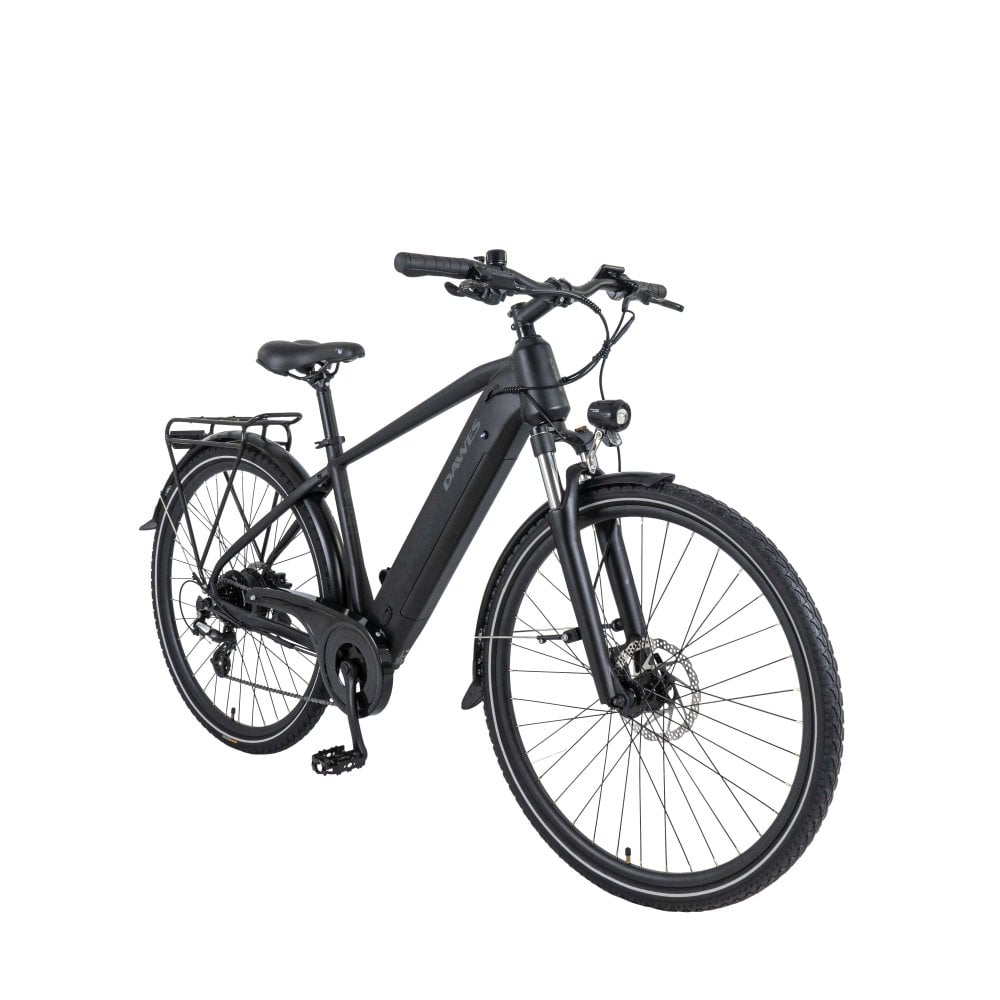

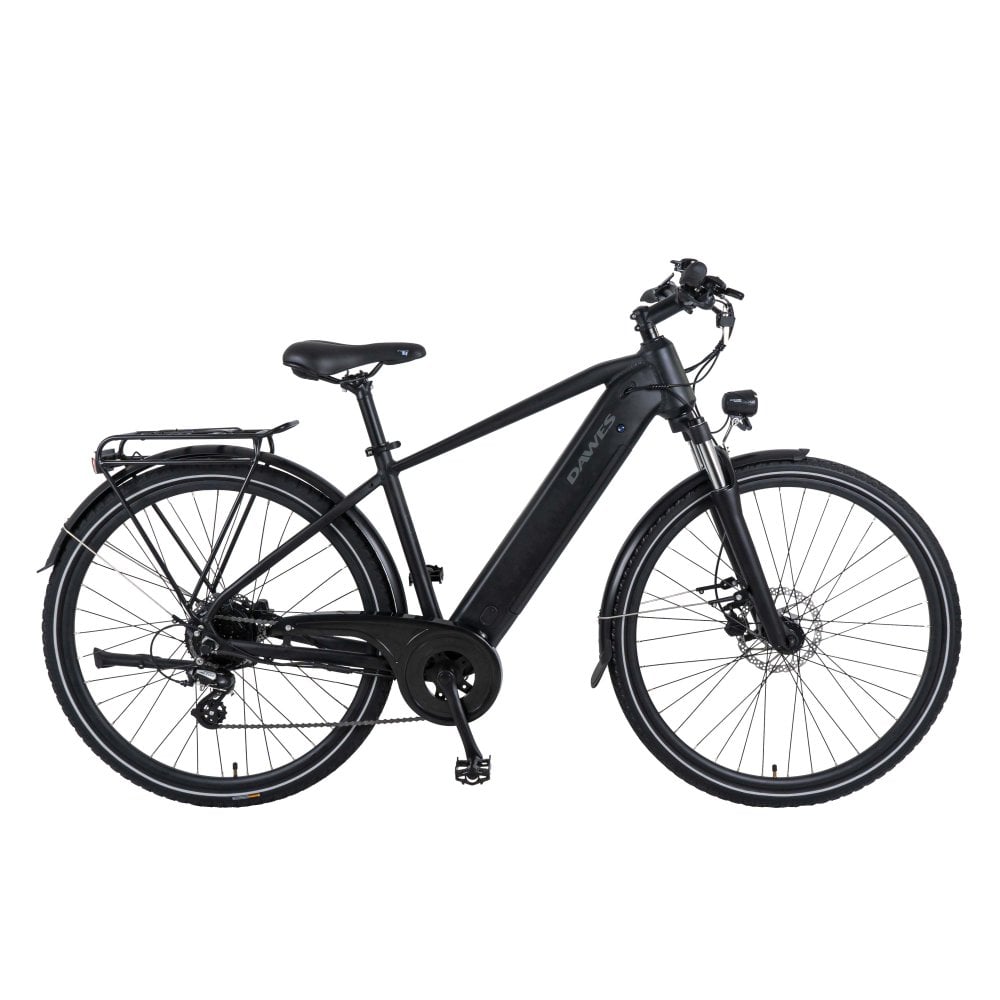

The all-new Dawes Spire 1.0 Crossbar electric bike is a versatile hybrid; perfectly suited for the daily commute, popping to the shops or a weekend of riding your local country park and canal towpaths.

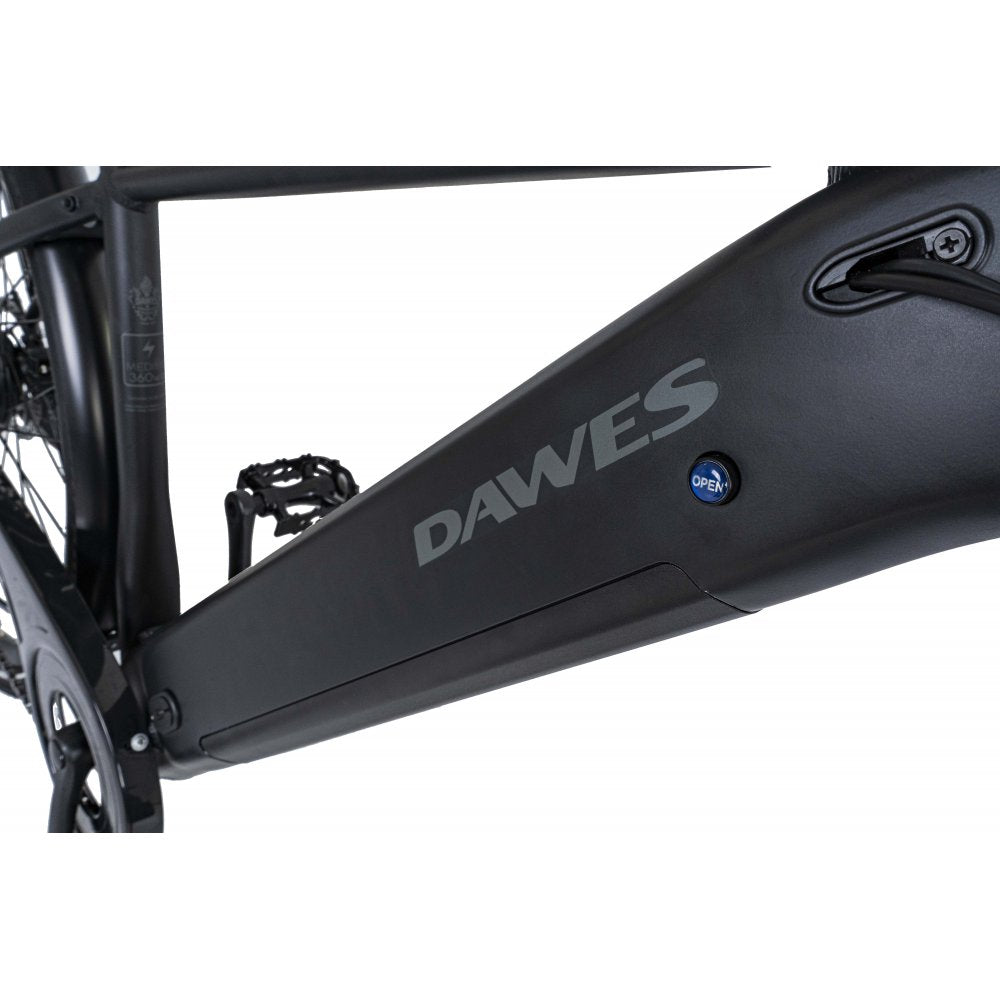

The crossbar frame is equipped with a neatly integrated 360wh battery that can deliver over 28 miles/45km of assisted pedalling. The power is delivered from within the Bafang rear hub motor, a brand who is quickly establishing themselves as one of the leading bicycle motor brands with excellent build quality, performance, and value for money.

With 32nm of torque, the Spire 1.0 delivers plenty of power to keep the wheels turning up dragging hills and make flat terrain a breeze. The battery uses high quality cells from Samsung, another leading brand in the electric bike industry and all pass the most stringent safety and performance tests required by UK and EU law for peace of mind. The battery can be charged on or off the bike, with a complete charge from flat within 5 hours and is easily removed without tools for added convenience. An integrated battery lock ensures peace of mind when left in public.

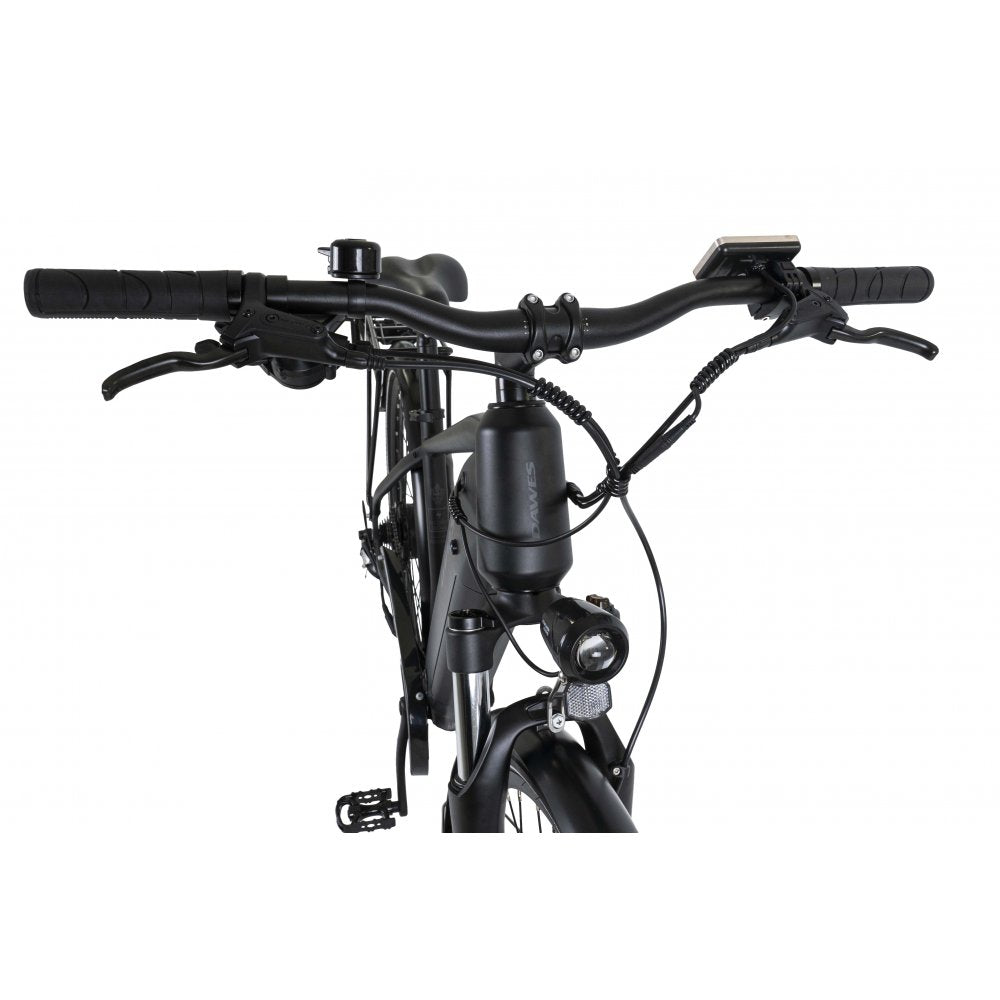

An easy-to-read display and intuitive computer system offers 5 power assist modes and plenty of information to track your ride including; battery level, current speed, average speed, max speed, trip distance and trip time. To make things easy when off the bike, we’ve fitted a walk assist mode that engages the motor to help drive the bike when pushing up steep hills.

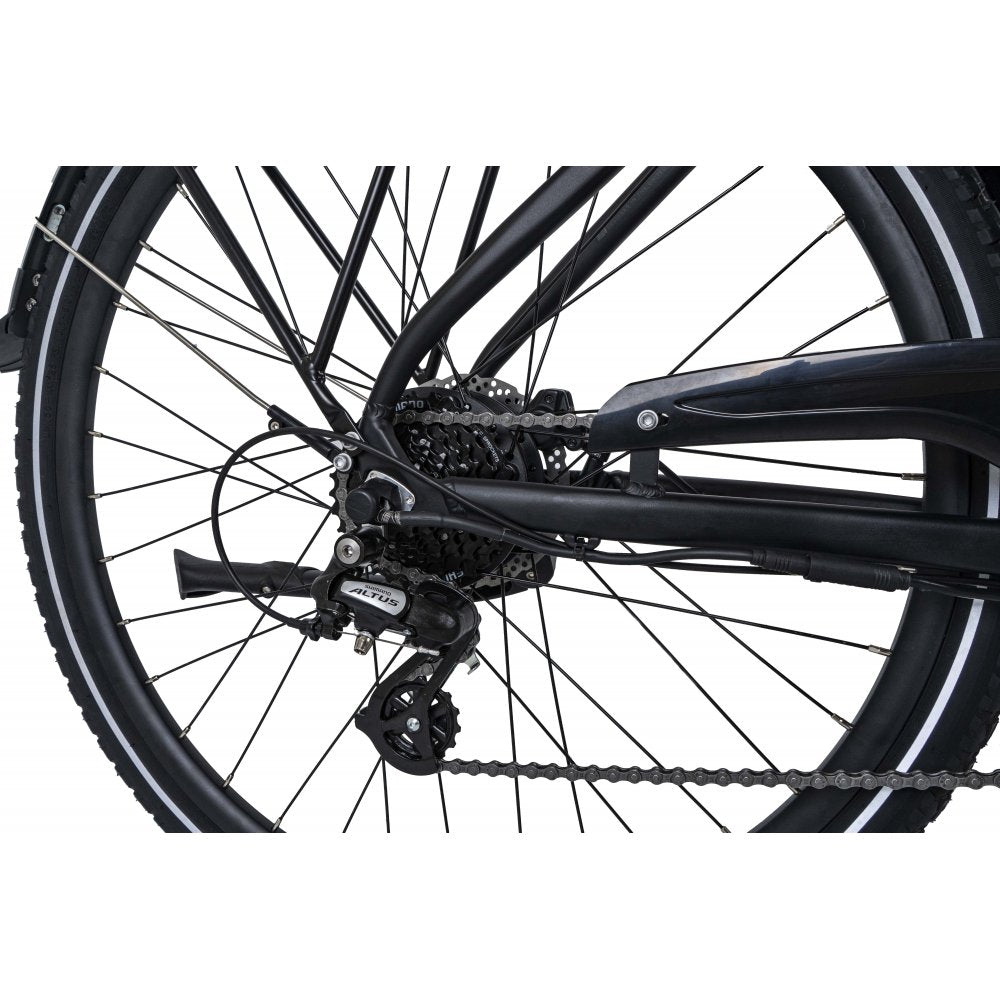

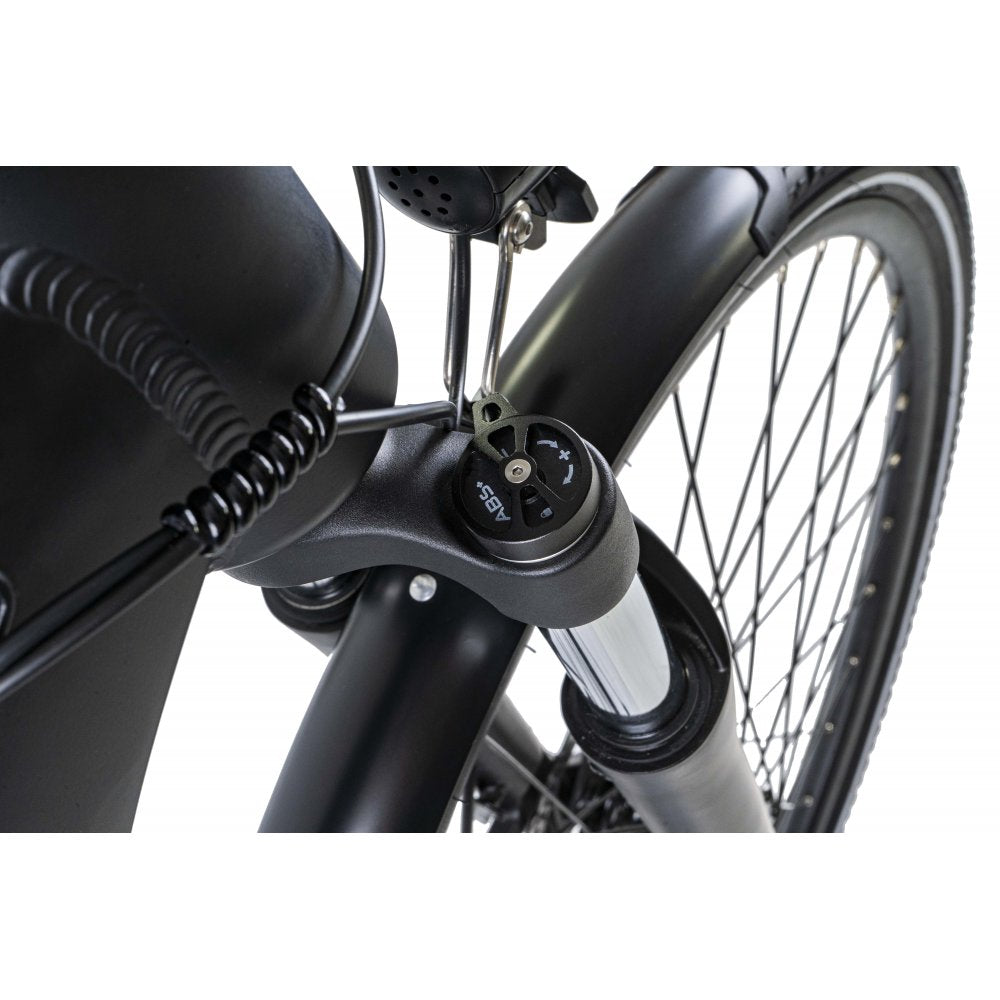

We’ve equipped the Spire 1.0 with dependable 1x8 speed Shimano Altus gearing and powerful, low maintenance Shimano MT200 hydraulic disc brakes to help keep you in control when navigating the city traffic or local cycle path. A 70mm travel suspension fork with hydraulic lockout takes care of bumps and uneven terrain.

For rider contact points you’ll find a comfortable Selle Royal Freeway saddle, ergonomically shaped grips and alloy city pedals. The 700x45c Kenda tyres are grippy and fast rolling with added puncture protection to help keep flat tyres at bay while the reflective detailing increases visibility in low light and nighttime settings.

Lastly, the Spire 1.0 comes as standard with bright front and rear LED lights that are powered directly by the battery, a rear pannier rack for transporting luggage, mudguards to avoid tyre spray and a handy kickstand for parking your bike.


Maximum Range 40 miles / 64km
Recharge Time 5 hours
Maximum Assisted Speed 15.5mph / 25kmh
Motor Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
Motor Type Rear hub motor
Motor Torque 32nm
Battery Integrated 360wh (36V 10.0ah), Samsung cells, Removable for charging on or off the bike
Battery Type Integrated
Charger 42V 2A, 3 pin UK plug

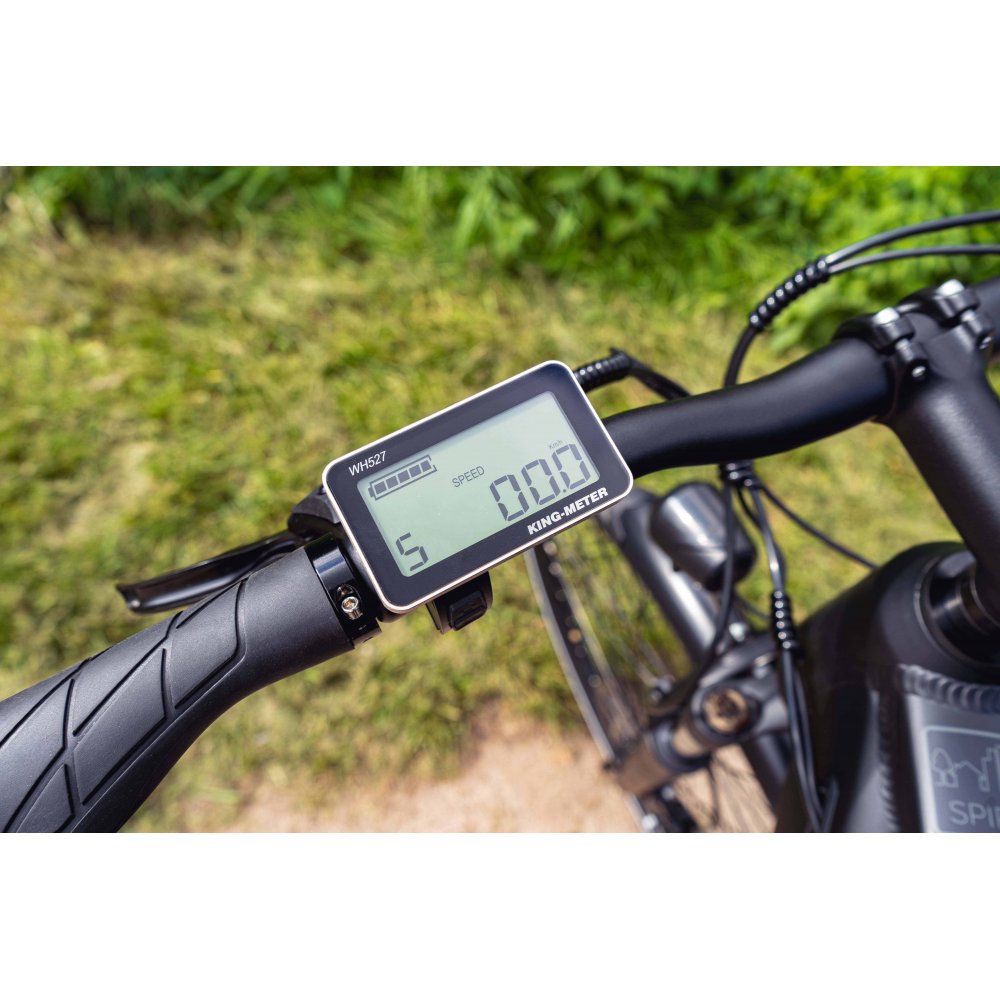

Display Handlebar LCD display, 5 modes, Walk assist, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time
Speed Sensor Left hand crank mounted

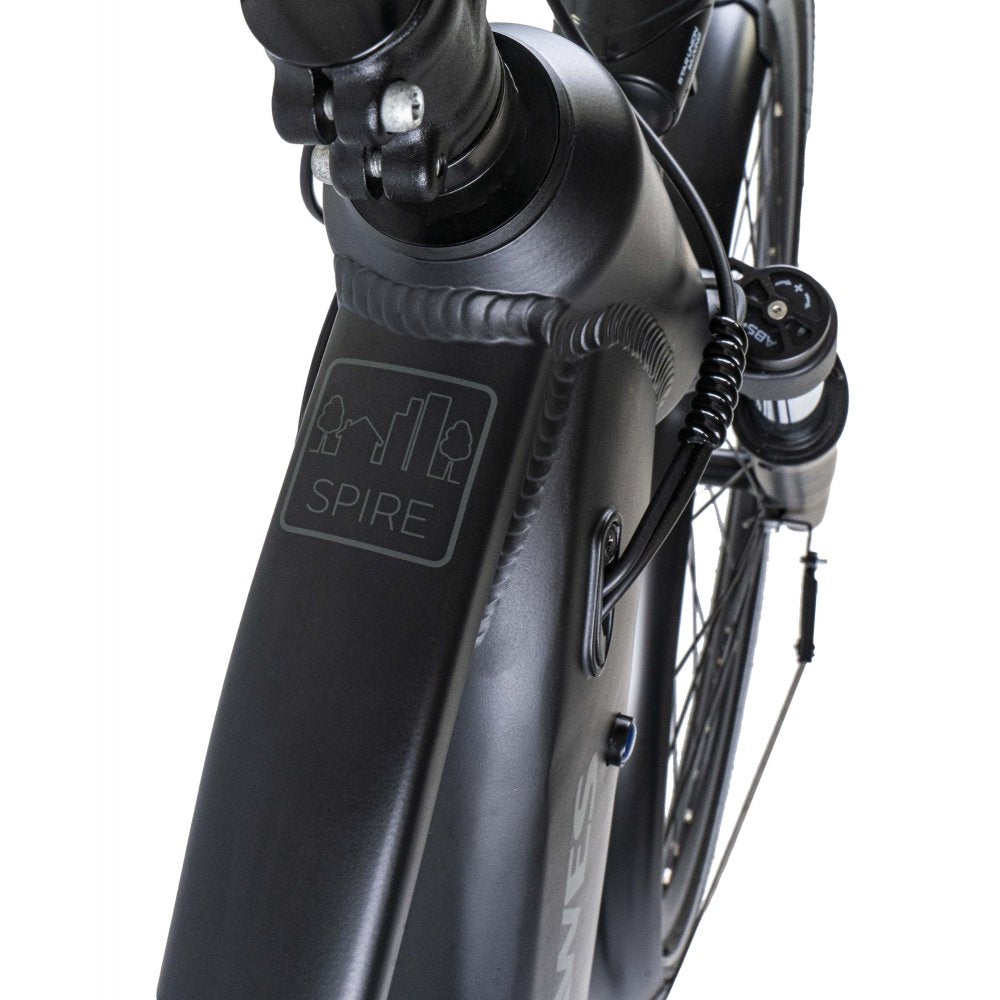

Frame 6061 aluminium crossbar frame, Internal cable routing, Fully integrated removable battery, 700c wheels
Fork 700c suspension fork, Hydraulic lockout, 70mm travel
Headset Sealed bearings
Handlebar Aluminium, 680mm wide, 20mm rise, 6° backsweep
Stem Aluminium, 90mm reach, 31.8mm
Grips Ergonomic comfort, Lock on, Black
Gear Shifters Shimano Altus SL-M315 Rapidfire Plus, 8 speed
Rear Derailleur Shimano Altus RD-M310, 8 speed
Chain KMC Z8.1, 8 speed
Cassette/Freewheel Shimano Altus CS-HG200, 12-32T, 8 speed
Chainset Aluminium, 42T, 170mm
Number of Gears 8
Bottom Bracket Sealed
Pedals Alloy city style, Black
Brakes Shimano MT200 hydraulic disc, 180mm rotor (front), 160mm rotor (rear)
Brake Levers Shimano MT200 hydraulic disc
Front Hub Alloy with quick release, 36 hole
Rear Hub Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed
Rims 700c double wall alloy, 36 hole
Tyres Kenda K197, 700x45c, Puncture protection and reflective side strip

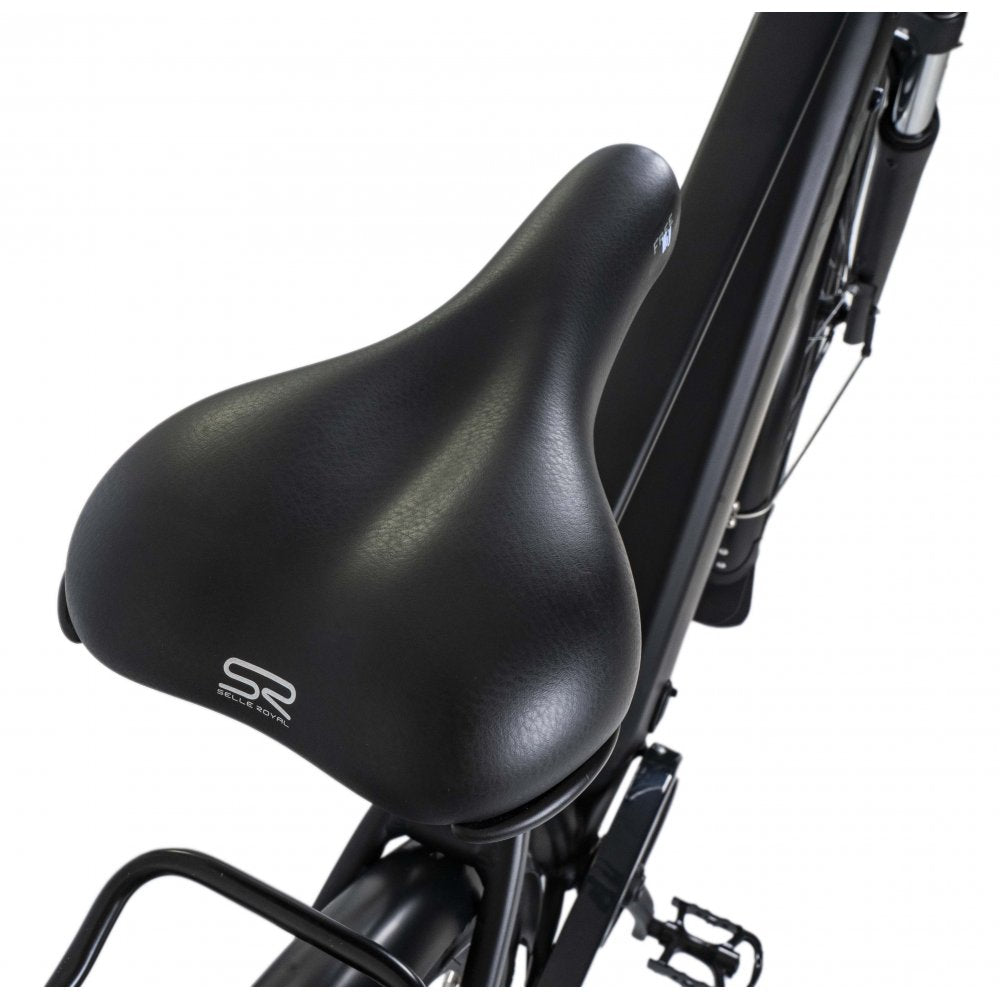

Saddle Selle Royal Freeway
Seat Post Aluminium, 350mm, 30.4mm
Lights Front Light - Star Union LED, 20 Lux, Fork mounted, Powered by bike battery / Rear Light - Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery
Mudguards Full length, 56mm wide, Black
Kickstand Chainstay mounted, Aluminium
Pannier Rack Aluminium with rear light mounted
