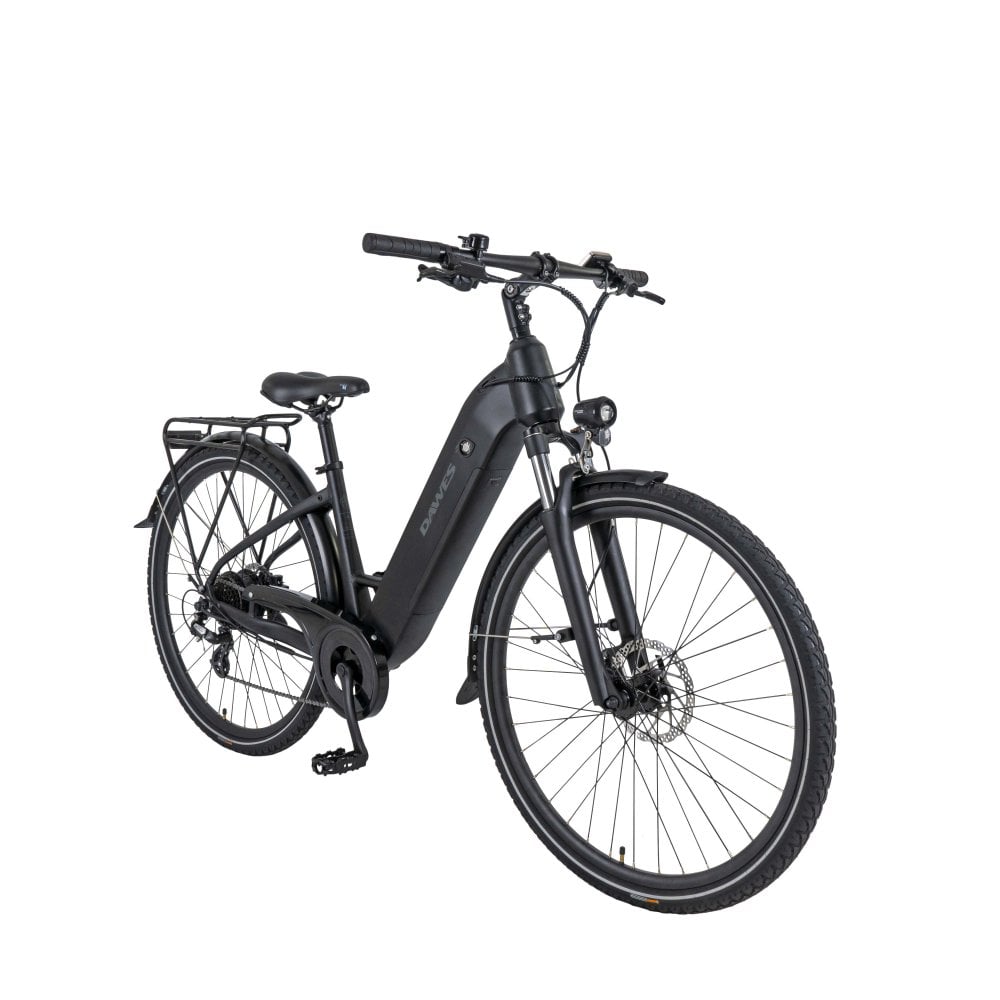

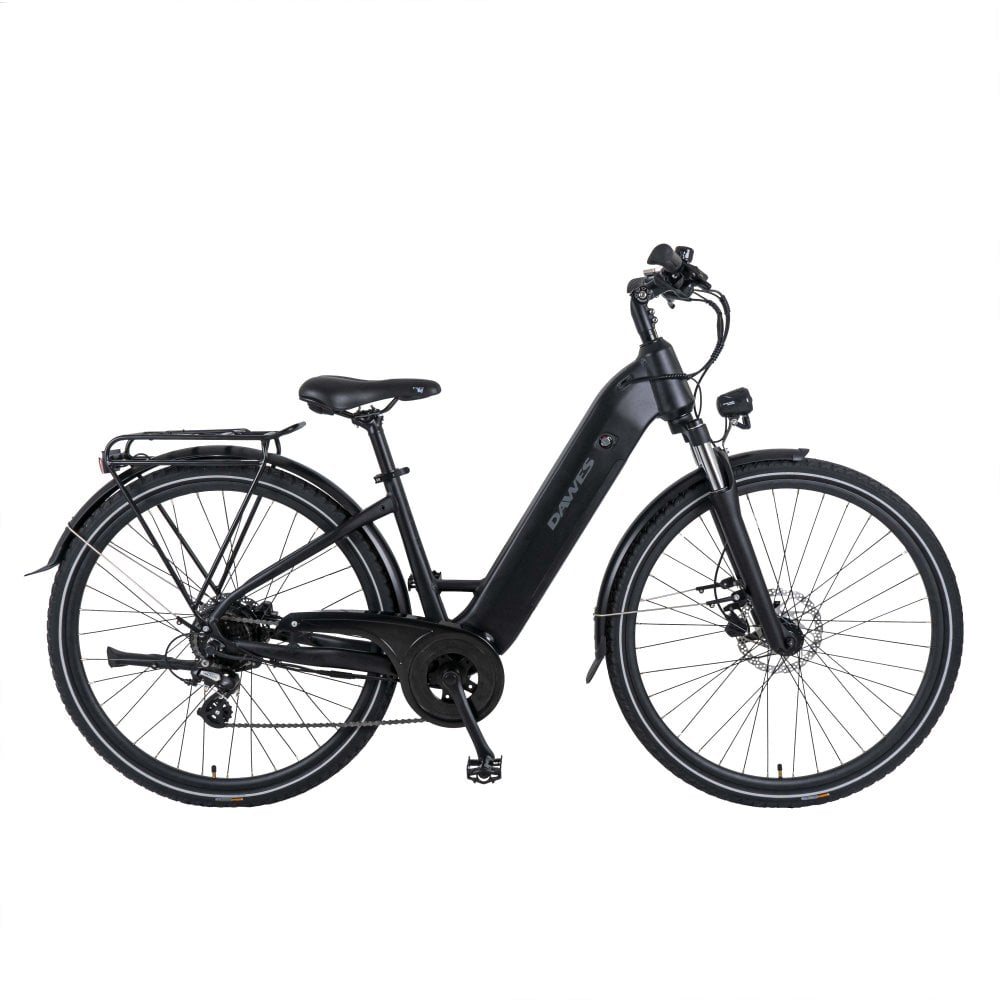

Dawes Spire 1.0 Low Step Electric Hybrid Bike
Dawes Spire 1.0 Low Step Electric Hybrid Bike
Dawes Spire 1.0 Low Step Electric Hybrid Bike
The Dawes Spire 1.0 Low Step Electric Hybrid Bike is a versatile and reliable choice for daily commutes, shopping trips, or leisurely rides through parks and canal paths. This bike offers a blend of comfort, performance, and practicality, making it ideal for various riding conditions.
Powered by a Bafang rear hub motor with 32Nm of torque, the Spire 1.0 ensures smooth and efficient rides. The 360Wh integrated battery provides a maximum range of up to 40 miles (64 km) on a full charge, with a recharge time of just 5 hours. The high-quality Samsung cells used in the battery ensure reliability and safety, meeting stringent UK and EU standards.
The bike features a handlebar-mounted LCD display that allows riders to choose from five power assist modes and provides essential ride information such as battery level, current speed, average speed, max speed, trip distance, and trip time. A walk assist mode is also included for added convenience when pushing the bike up steep inclines.
For a comfortable and controlled ride, the Dawes Spire 1.0 is equipped with a Shimano Altus 8-speed gear system and Tektro hydraulic disc brakes. The bike also includes a 70mm travel suspension fork with hydraulic lockout, a Selle Royal Freeway saddle, and ergonomic lock-on grips for enhanced rider comfort.
Technical Specifications
| Maximum Range | 40 miles / 64 km |
| Recharge Time | 5 hours |
| Maximum Assisted Speed | 15.5 mph / 25 km/h |
| Motor | Bafang rear hub motor, 36V 250W, 32Nm torque |

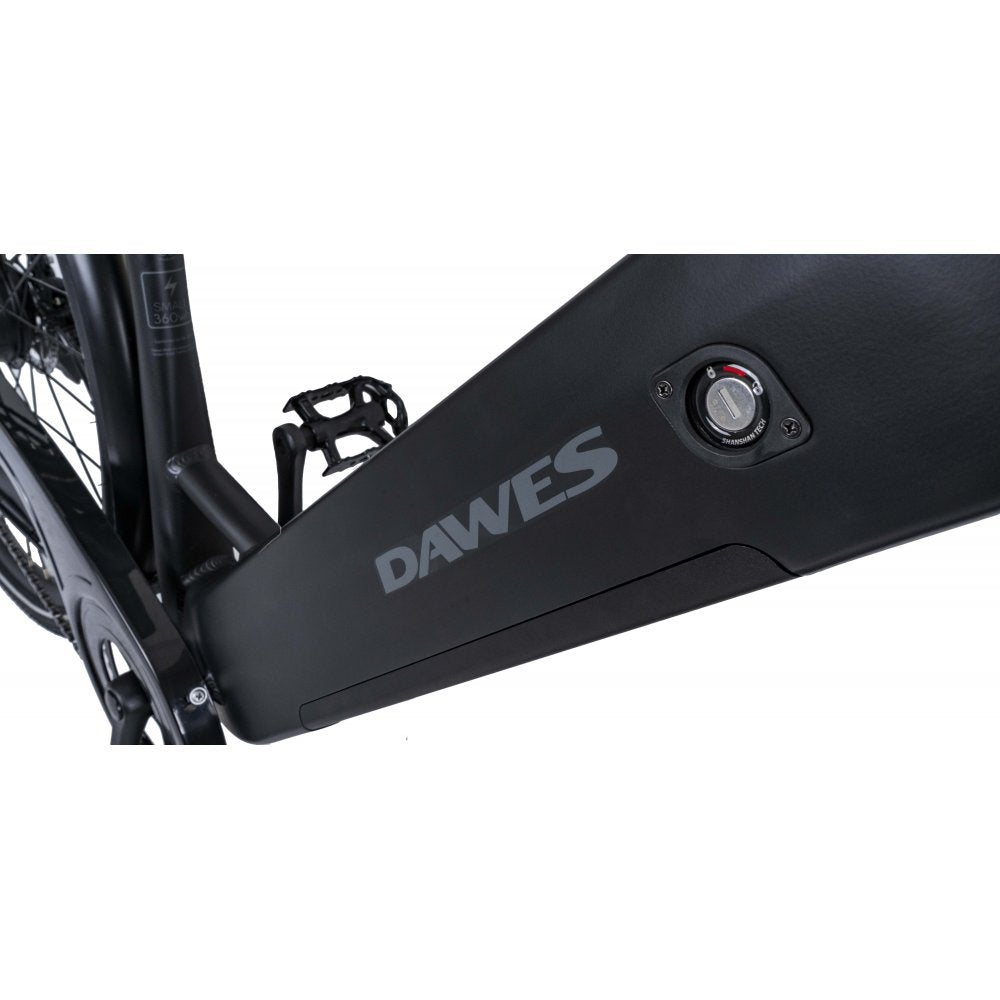

| Battery | 36V 10Ah, 360Wh, Samsung cells, Integrated, Removable |
| Charger | 42V 2A, 3 pin UK plug |

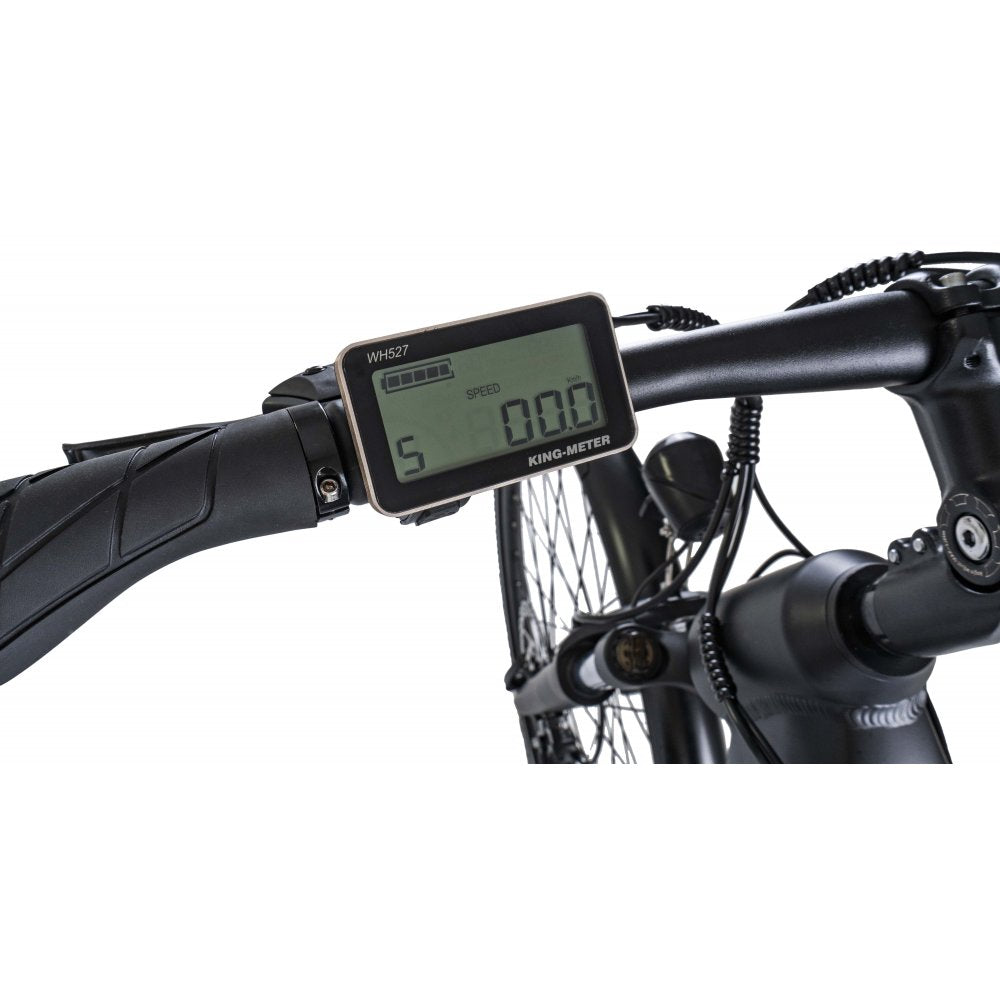

| Display | Handlebar LCD with mode selection, battery indicator, speed, average speed, max speed, odometer, trip, trip time |
| Frame | 6061 aluminium low step frame, Internal cable routing, 700c wheels |
| Fork | 700c suspension fork, Hydraulic lockout, 70mm travel |
| Headset | Sealed bearings |
| Handlebar | Aluminium, 680mm wide, 15° backsweep |
| Stem | Adjustable, Aluminium, 90mm reach, 31.8mm |
| Grips | Ergonomic comfort, Lock on, Black |
| Gear Shifters | Shimano Altus SL-M315 Rapidfire Plus, 8 speed |

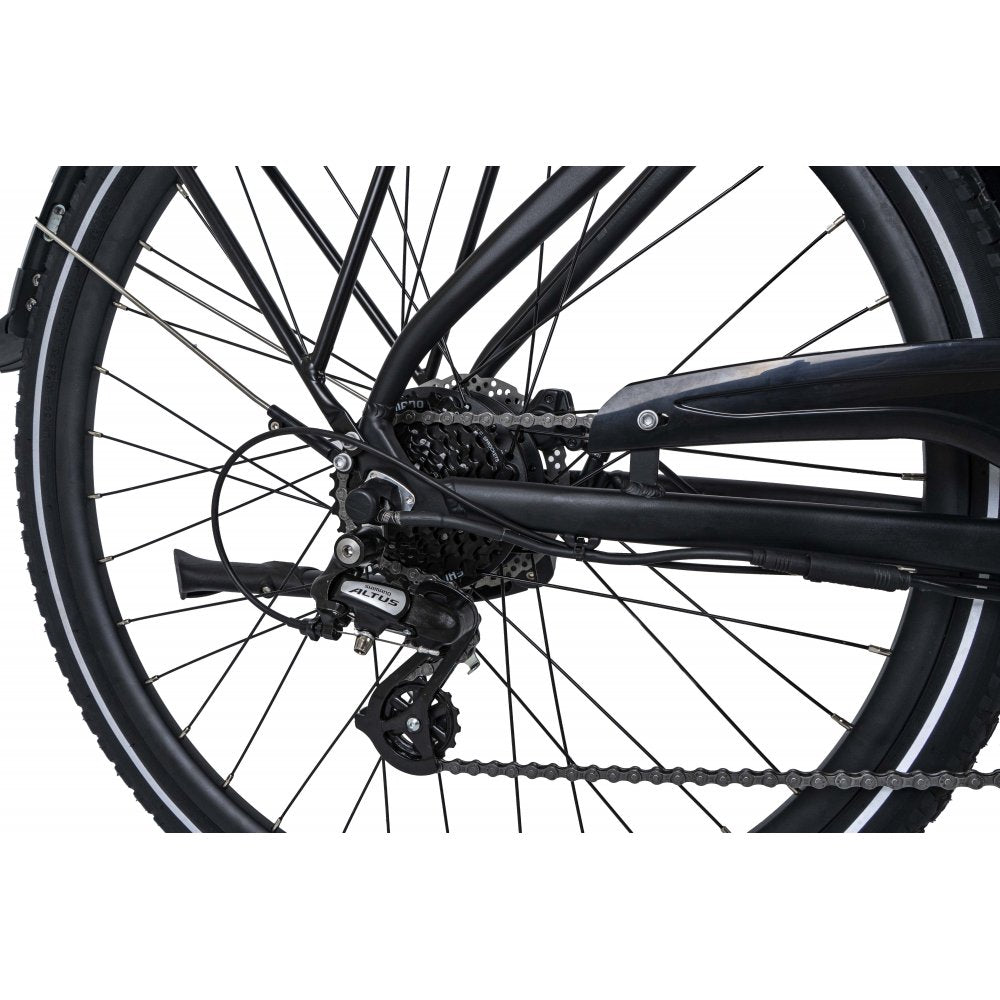

| Rear Derailleur | Shimano Altus RD-M310, 8 speed |
| Chain | KMC Z8.1 |
| Cassette/Freewheel | Shimano 11-32T, 8 speed |
| Chainset | Aluminium, 42T, 170mm |
| Number of Gears | 8 |
| Bottom Bracket | Sealed |
| Pedals | Alloy city style, Black |
| Brakes | Tektro M275 hydraulic disc brakes, 180mm rotor (front), 160mm rotor (rear) |
| Front Hub | Alloy with quick release, 36 hole |
| Rims | 700c double wall alloy, 36 hole |
| Tyres | Kenda K197, 700x45c, Puncture protection, Reflective sidewall |
| Saddle | Selle Royal Freeway |
| Seat Post | Aluminium, 350mm, 30.4mm |
| Lights | Front: Star Union LED, 20 Lux, Fork mounted, Powered by bike battery; Rear: Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery |
| Mudguards | Full length, 56mm wide, Black |
| Kickstand | Chainstay mounted, Aluminium |

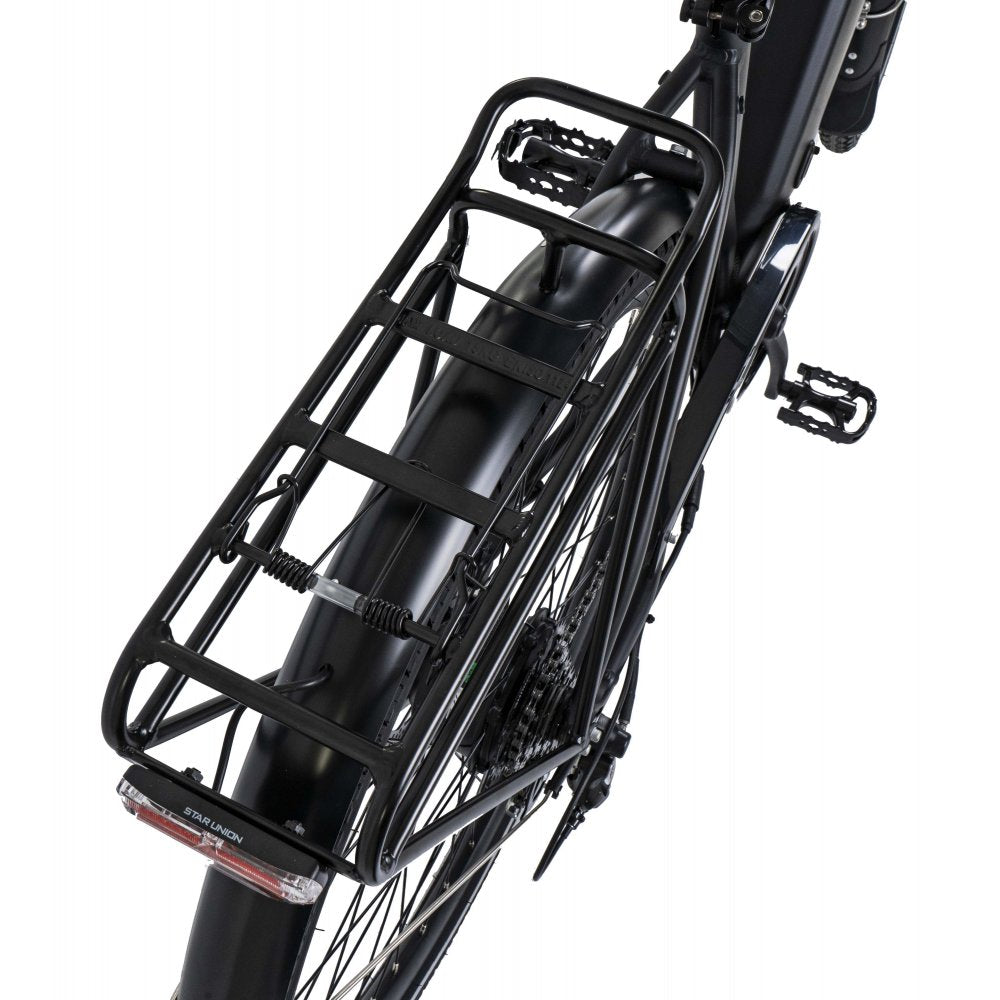

| Pannier Rack | Aluminium with rear light mounted |
The Dawes Spire 1.0 Low Step Electric Hybrid Bike is an ideal choice for those seeking a practical, comfortable, and efficient e-bike for various riding scenarios. Its robust construction, reliable components, and advanced motor and battery system ensure a smooth and enjoyable ride.
