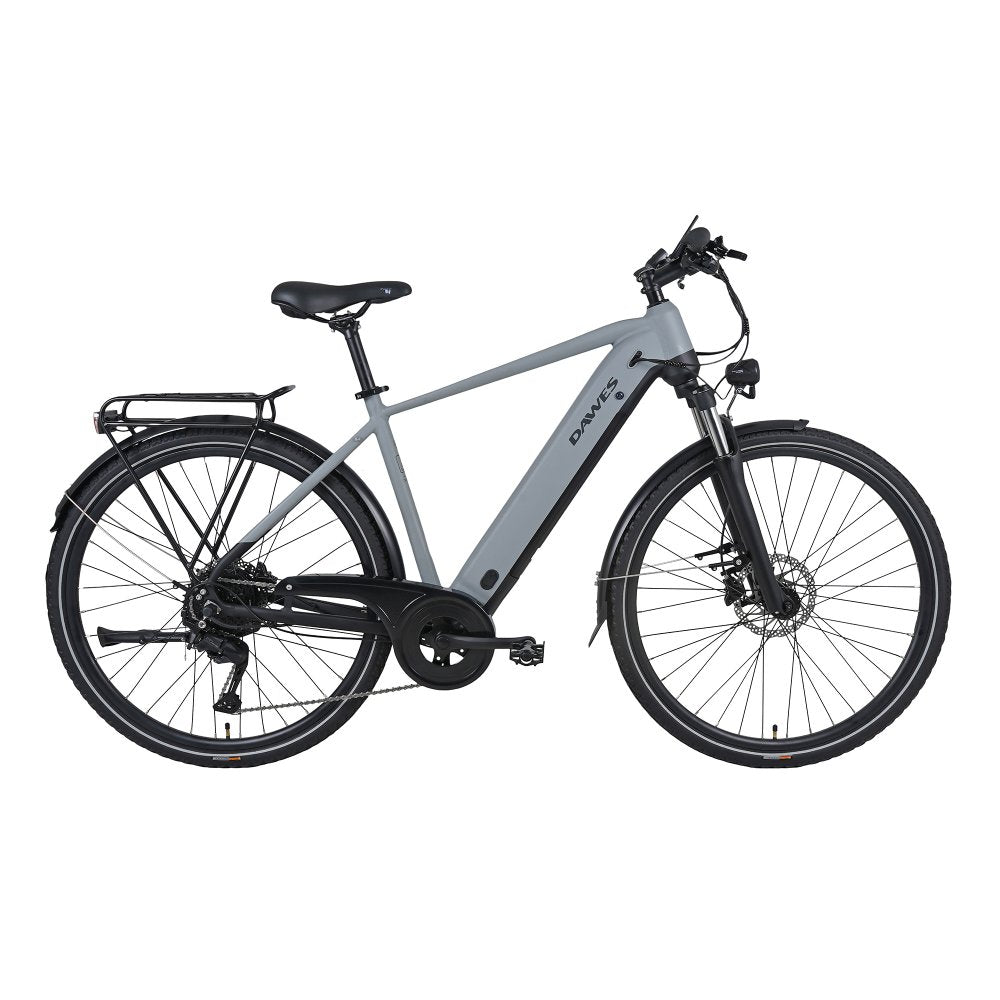

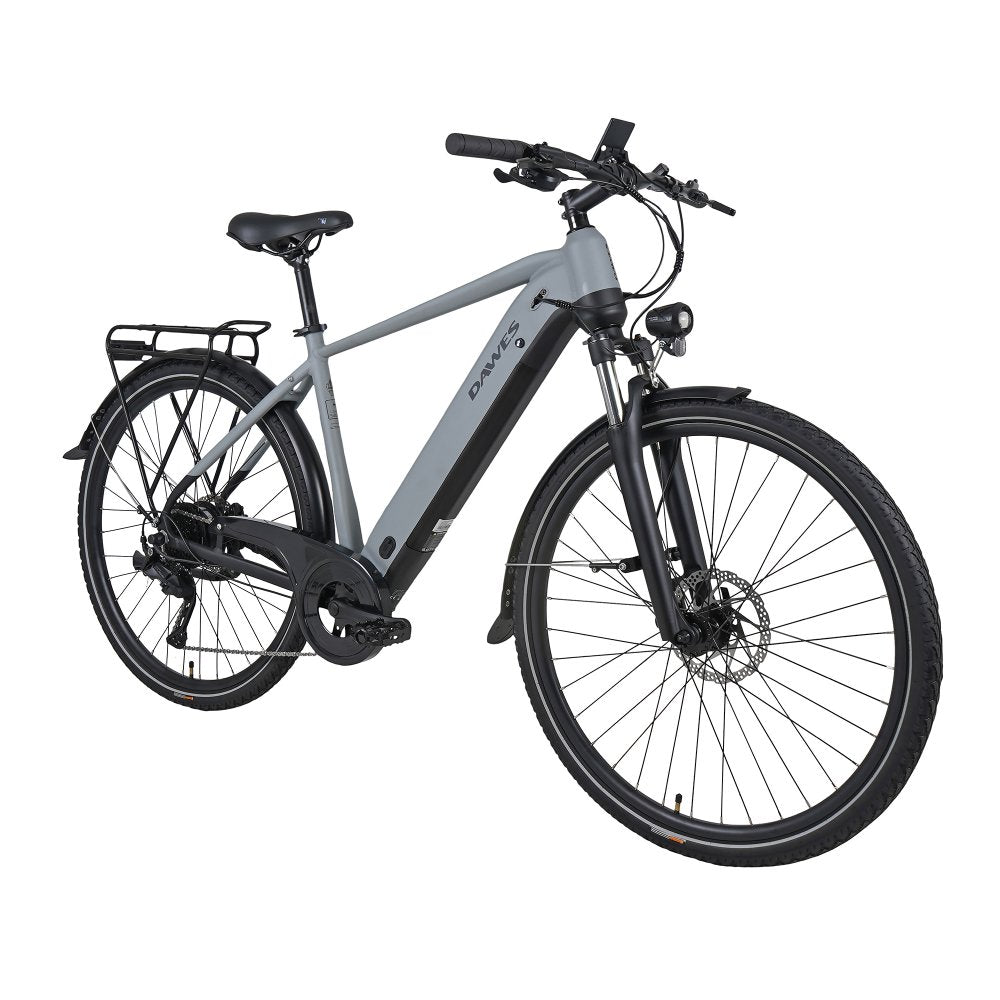

Dawes - Spire 2.0 Cues Crossbar Electric Hybrid Bike - 2025
Dawes - Spire 2.0 Cues Crossbar Electric Hybrid Bike - 2025
The Dawes Spire 2.0 Crossbar has been updated – now featuring the latest Shimano Cues 1x9 speed gearing and Shimano MT200 hydraulic disc brakes. We've also refined our eBike system software for faster motor pick up from standing start.
The Spire 2.0 Crossbar electric bike is a versatile hybrid; perfectly suited for the daily commute, popping to the shops or a weekend of riding your local country park and canal towpaths. When compared to the Dawes Spire 1.0, this bike features upgraded 1x9 Shimano gearing, a larger 540wh battery and a sleek centre mounted handlebar display.

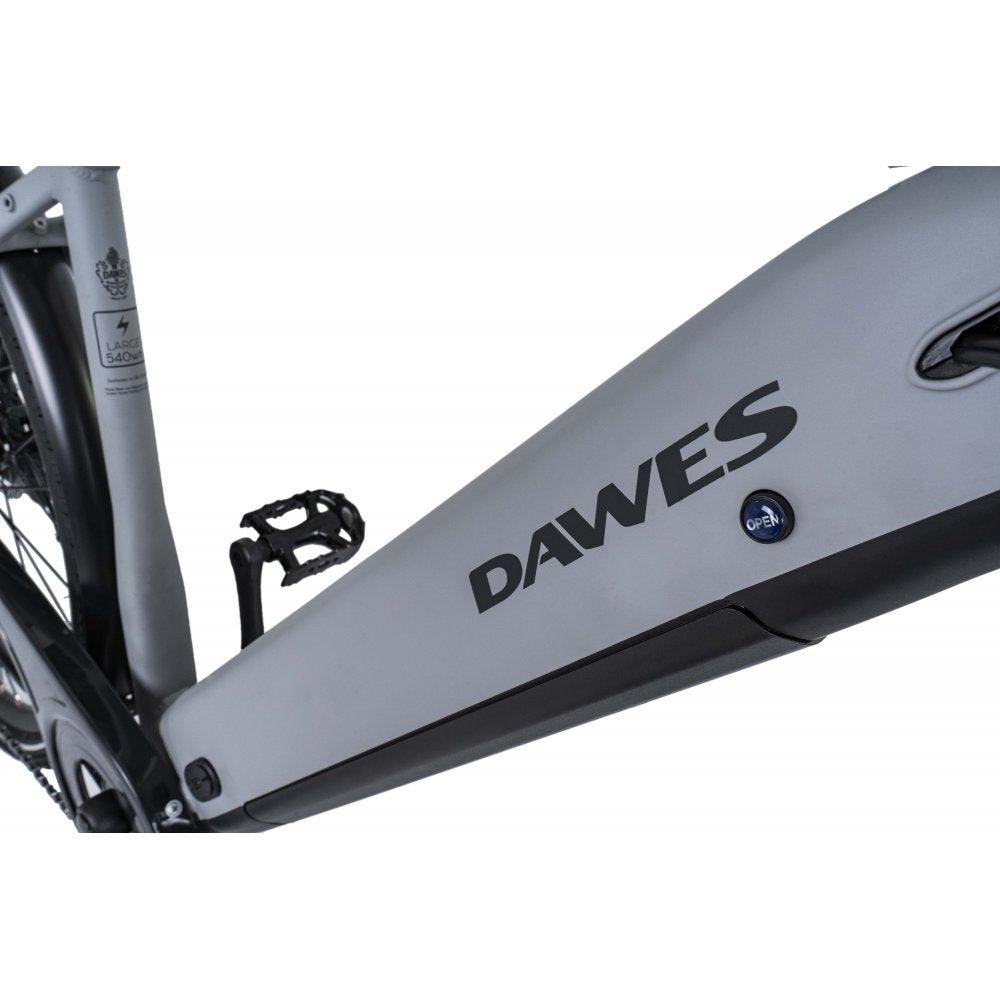

The crossbar frame is equipped with a neatly integrated 540wh battery that can deliver over 60 miles/97km of assisted pedalling. The power is delivered from within the Bafang rear hub motor, a brand who is quickly establishing themselves as one of the leading bicycle motor brands with excellent build quality, performance, and value for money.
With 32nm of torque, the Spire 2.0 delivers plenty of power to keep the wheels turning up dragging hills and make flat terrain a breeze. The battery uses high quality cells from Samsung, another leading brand in the electric bike industry and all pass the most stringent safety and performance tests required by UK and EU law for peace of mind. The battery can be charged on or off the bike, with a complete charge from flat within 6 hours and is easily removed without tools for added convenience. An integrated battery lock ensures peace of mind when left in public.

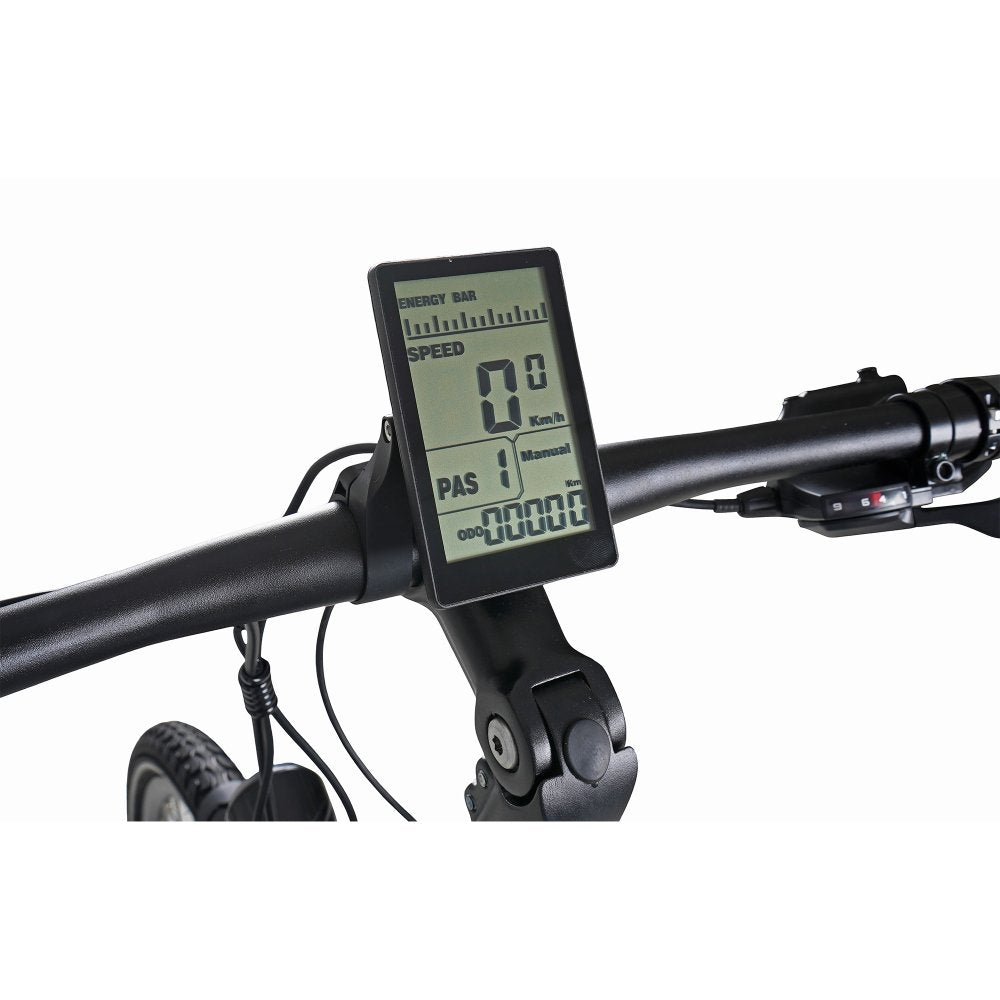

The stylish centre-mounted display makes monitoring your ride information super-easy and you can cycle through the different functions using the side-mounted remote. This intuitive computer system offers 5 power assist modes and, current speed, average speed, max speed, trip distance and trip time. To make things easy when off the bike, we’ve fitted a walk assist mode that engages the motor to help drive the bike when pushing up steep hills.

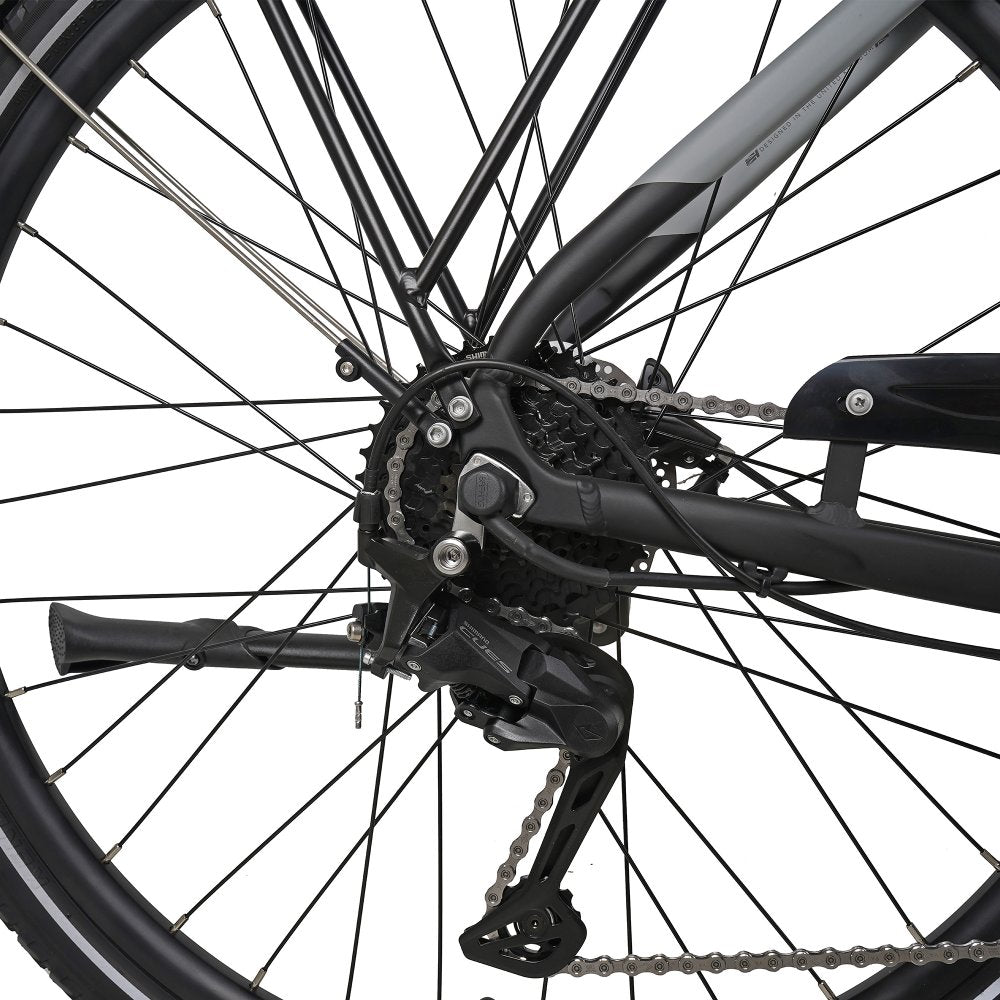

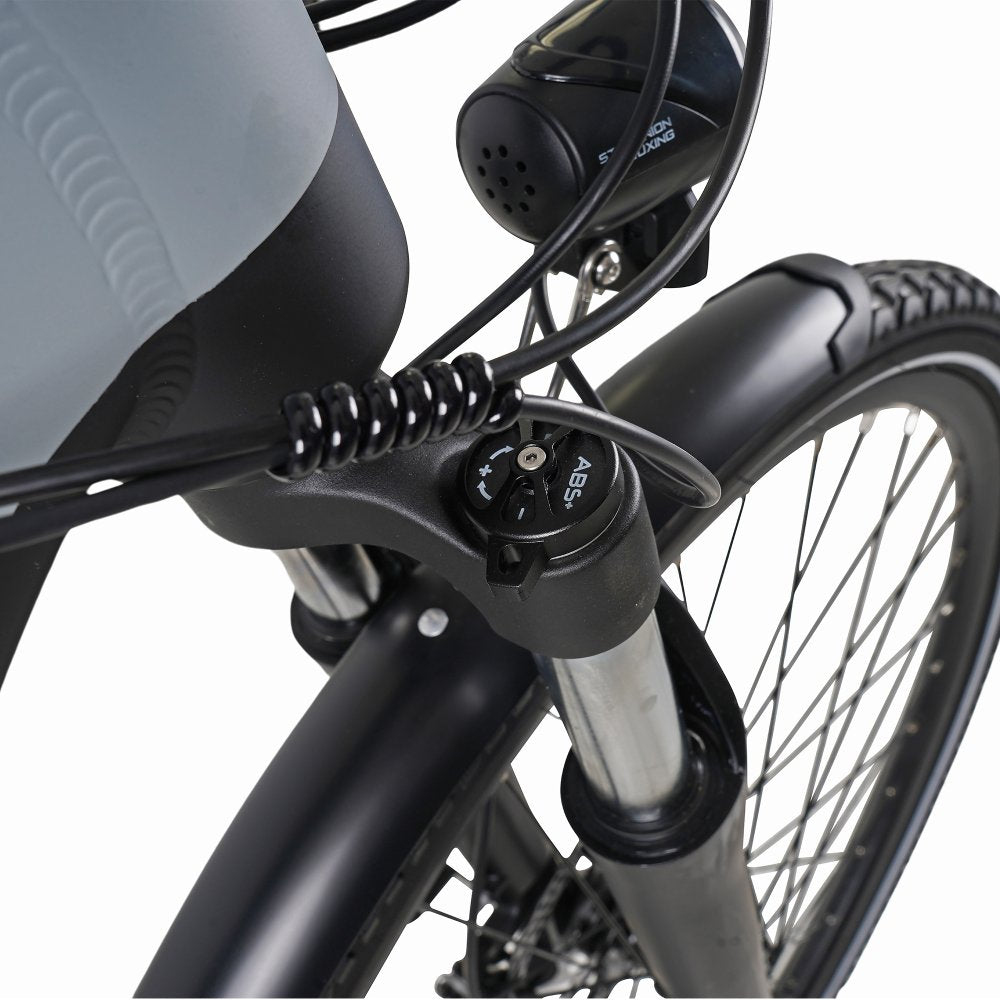

We’ve equipped the Spire 2.0 with dependable 1x9 speed Shimano Cues gearing and powerful, low maintenance Shimano MT200 hydraulic disc brakes to help keep you in control when navigating the city traffic or local cycle path. A 70mm travel suspension fork with hydraulic lockout takes care of bumps and uneven terrain.
For rider contact points you’ll find a comfortable Selle Royal Freeway saddle, ergonomically shaped grips and alloy city pedals. The 700x45c Kenda tyres are grippy and fast rolling with added puncture protection to help keep flat tyres at bay while the reflective detailing increases visibility in low light and nighttime settings.

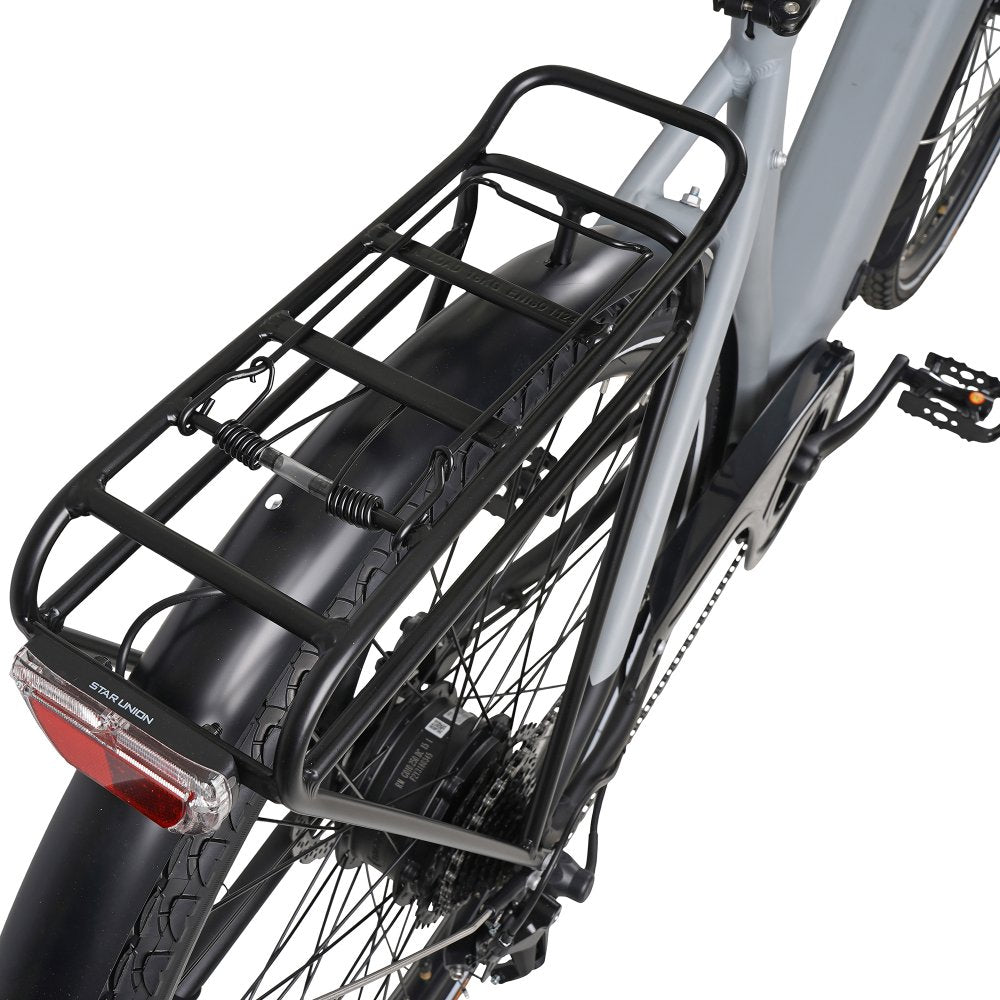

Lastly, the Spire 2.0 comes as standard with bright front and rear LED lights that are powered directly by the battery, a rear pannier rack for transporting luggage, mudguards to avoid tyre spray and a handy kickstand for parking your bike.
690417-1 | Maximum Range | 60 miles / 97km |
---|---|---|
690417-1 | Recharge Time | 6 hours |
690417-1 | Maximum Assisted Speed | 15.5mph / 25kmh |
690417-1 | Motor | Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed |
690417-1 | Motor Type | Rear hub motor |
690417-1 | Motor Torque | 32nm |
690417-1 | Battery | Integrated 540wh (36V 15.0ah), Samsung cells, Removable for charging on or off the bike |
690417-1 | Battery Type | Integrated |
690417-1 | Charger | 42V 2A, 3 pin UK plug |
690417-1 | Display | Centre mounted LCD display, 5 modes, Walk assist, Lights on/off, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time, |
690417-1 | Speed Sensor | Left hand crank mounted |

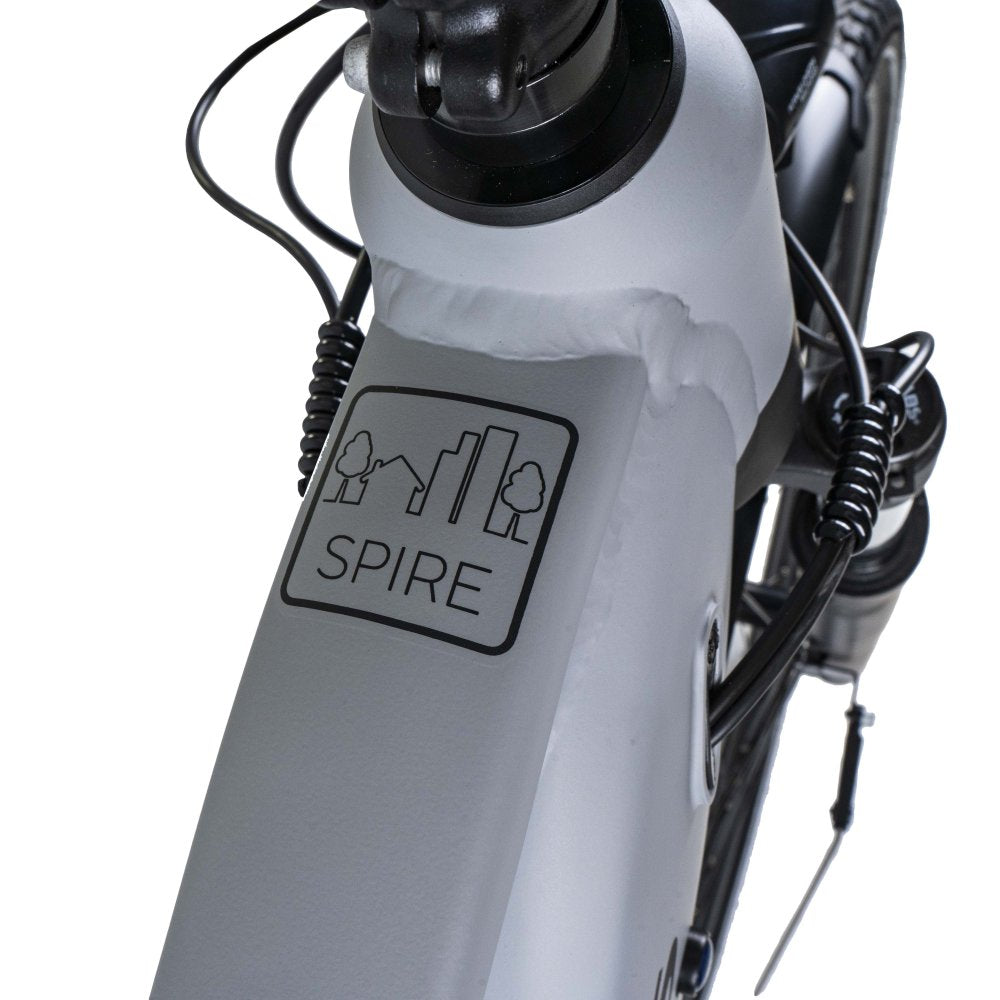

690417-1 | Frame | 6061 aluminium crossbar frame, Internal cable routing, Fully integrated removable battery, 700c wheels |
690417-1 | Frame Size | Medium |
690417-1 | Fork | 700c suspension fork, Hydraulic lockout, 70mm travel |
690417-1 | Headset | Sealed bearings |
690417-1 | Handlebar | Aluminium, 680mm wide, 20mm rise, 6° backsweep |
690417-1 | Stem | Aluminium, 90mm reach, 31.8mm |
690417-1 | Grips | Ergonomic comfort, Lock on, Black |
690417-1 | Gear Shifters | Shimano Cues SL-U4000-9R Rapidfire Plus, 9 speed |
690417-1 | Rear Derailleur | Shimano Cues RD-U3020 Shadow, 9 speed |
690417-1 | Chain | Shimano CN-LG500, 9 speed |
690417-1 | Cassette/Freewheel | Shimano Cues CS-LG300-9, 11-36T, 9 speed |
690417-1 | Chainset | Aluminium, 42T, 170mm |
690417-1 | Number of Gears | 9 |
690417-1 | Bottom Bracket | Sealed |
690417-1 | Pedals | Alloy city style, Black |
690417-1 | Brakes | Shimano MT200 hydraulic disc, 180mm rotor (front), 160mm rotor (rear) |
690417-1 | Brake Levers | Shimano MT200 hydraulic disc |
690417-1 | Front Hub | Alloy with quick release, 36 hole |
690417-1 | Rear Hub | Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed |
690417-1 | Rims | 700c double wall alloy, 36 hole |
690417-1 | Tyres | Kenda K197, 700x45c, Puncture protection and reflective side strip |
690417-1 | Saddle | Selle Royal Freeway |
690417-1 | Seat Post | Aluminium, 350mm, 30.4mm |
690417-1 | Mudguards | Full length, 56mm wide, Black |
690417-1 | Kickstand | Chainstay mounted, Aluminium |
690417-1 | Pannier Rack | Aluminium with rear light mounted |
690417-1 | Other Accessories | Front Light - Star Union LED, 20 Lux, Fork mounted, Powered by bike battery / Rear Light - Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery |
690419-1 | Maximum Range | 60 miles / 97km |
690419-1 | Recharge Time | 6 hours |
690419-1 | Maximum Assisted Speed | 15.5mph / 25kmh |
690419-1 | Motor | Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed |
690419-1 | Motor Type | Rear hub motor |
690419-1 | Motor Torque | 32nm |
690419-1 | Battery | Integrated 540wh (36V 15.0ah), Samsung cells, Removable for charging on or off the bike |
690419-1 | Battery Type | Integrated |
690419-1 | Charger | 42V 2A, 3 pin UK plug |
690419-1 | Display | Centre mounted LCD display, 5 modes, Walk assist, Lights on/off, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time, |
690419-1 | Speed Sensor | Left hand crank mounted |
690419-1 | Frame | 6061 aluminium crossbar frame, Internal cable routing, Fully integrated removable battery, 700c wheels |
690419-1 | Frame Size | Large |
690419-1 | Fork | 700c suspension fork, Hydraulic lockout, 70mm travel |
690419-1 | Headset | Sealed bearings |
690419-1 | Handlebar | Aluminium, 680mm wide, 20mm rise, 6° backsweep |
690419-1 | Stem | Aluminium, 90mm reach, 31.8mm |
690419-1 | Grips | Ergonomic comfort, Lock on, Black |
690419-1 | Gear Shifters | Shimano Cues SL-U4000-9R Rapidfire Plus, 9 speed |
690419-1 | Rear Derailleur | Shimano Cues RD-U3020 Shadow, 9 speed |
690419-1 | Chain | Shimano CN-LG500, 9 speed |
690419-1 | Cassette/Freewheel | Shimano Cues CS-LG300-9, 11-36T, 9 speed |
690419-1 | Chainset | Aluminium, 42T, 170mm |
690419-1 | Number of Gears | 9 |
690419-1 | Bottom Bracket | Sealed |
690419-1 | Pedals | Alloy city style, Black |
690419-1 | Brakes | Shimano MT200 hydraulic disc, 180mm rotor (front), 160mm rotor (rear) |
690419-1 | Brake Levers | Shimano MT200 hydraulic disc |
690419-1 | Front Hub | Alloy with quick release, 36 hole |
690419-1 | Rear Hub | Bafang rear hub motor, 36v 250w, 32nm torque, 25kmh max speed |
690419-1 | Rims | 700c double wall alloy, 36 hole |
690419-1 | Tyres | Kenda K197, 700x45c, Puncture protection and reflective side strip |
690419-1 | Saddle | Selle Royal Freeway |
690419-1 | Seat Post | Aluminium, 350mm, 30.4mm |
690419-1 | Mudguards | Full length, 56mm wide, Black |
690419-1 | Kickstand | Chainstay mounted, Aluminium |
690419-1 | Pannier Rack | Aluminium with rear light mounted |
690419-1 | Other Accessories | Front Light - Star Union LED, 20 Lux, Fork mounted, Powered by bike battery / Rear Light - Star Union 3 LED with integrated reflector, Pannier rack mounted, Powered by bike battery |
Share
Note:
- Some accessories shown in the pictures are sold separately and are not included with the product itself.
- The product images provided are for illustrative purposes only and may not precisely represent the actual product. Please refer to the product description for exact specifications. For any questions regarding the product, feel free to contact us before purchase.
