Dawes Spire 2.0 Crossbar Electric Hybrid Bike - 17"
Dawes Spire 2.0 Crossbar Electric Hybrid Bike - 17"

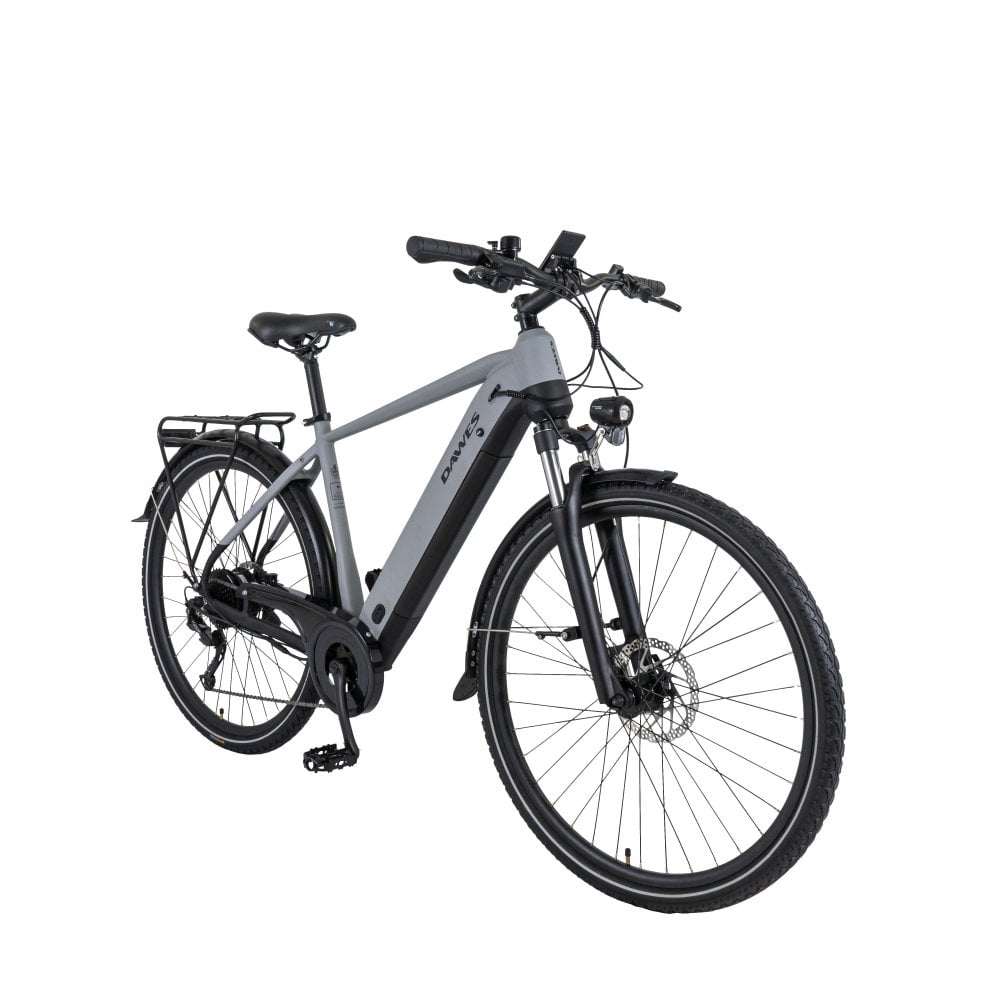

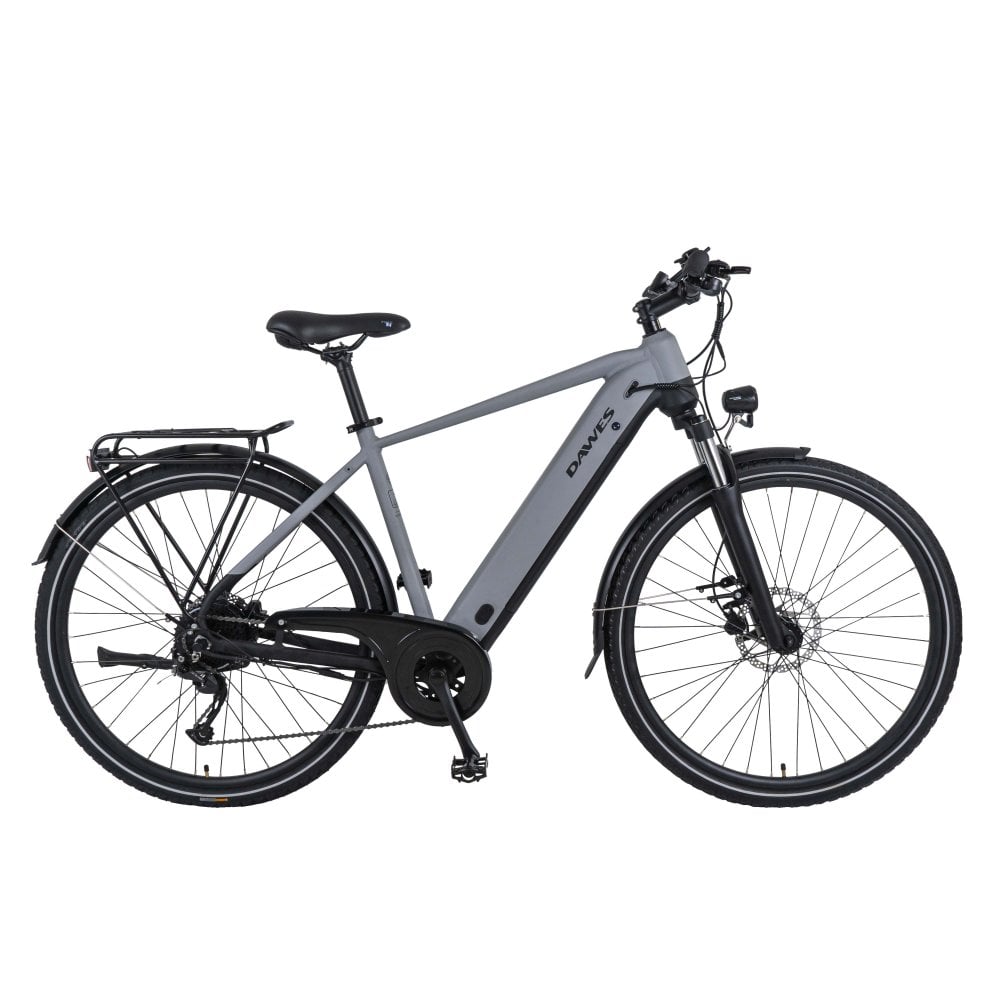

Dawes Spire 2.0 Crossbar Electric Hybrid Bike
The Dawes Spire 2.0 Crossbar Electric Hybrid Bike is a versatile hybrid bike, perfect for daily commutes, shopping trips, or weekend rides through parks and canal paths. It offers upgraded features from the Spire 1.0, including improved gearing, a larger battery, and a sophisticated handlebar display.
This bike is powered by a Bafang rear hub motor with 32Nm of torque, combined with a 540Wh integrated battery. This setup provides a maximum range of up to 60 miles (97 km) on a full charge, with a recharge time of approximately 6 hours. The battery, which uses high-quality Samsung cells, is removable for convenient charging and includes a key lock for added security.

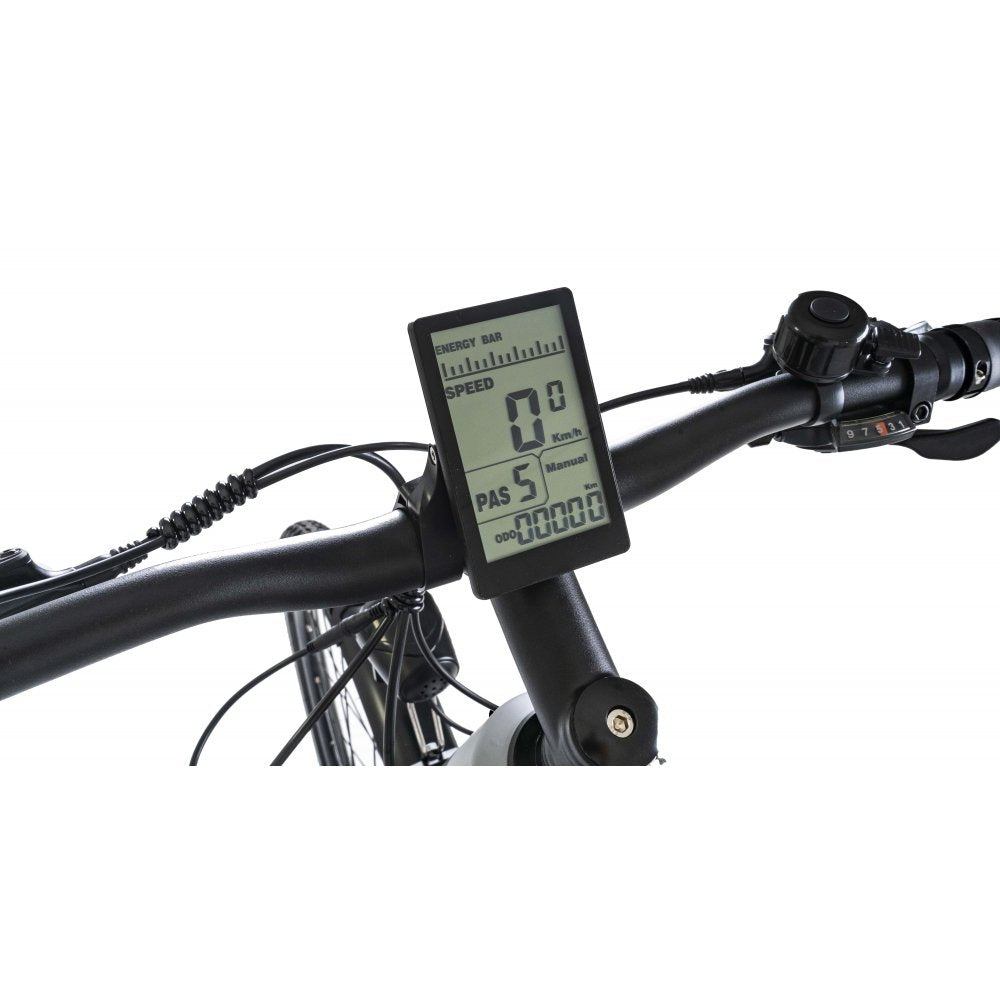

The bike features a centre-mounted LCD display that allows riders to select from five power assist modes, including a walk assist mode. The display also shows real-time information such as battery level, current speed, average speed, max speed, trip distance, and trip time.
For a smooth and controlled ride, the Dawes Spire 2.0 is equipped with a Shimano Alivio 9-speed gear system and Tektro hydraulic disc brakes. The bike also includes a 70mm travel suspension fork with hydraulic lockout, a Selle Royal Freeway saddle for enhanced comfort, and ergonomic lock-on grips.
Technical Specifications
| Maximum Range | 60 miles / 97 km |
| Recharge Time | 6 hours |
| Maximum Assisted Speed | 15.5 mph / 25 km/h |
| Motor | Bafang rear hub motor, 36V 250W, 32Nm torque |

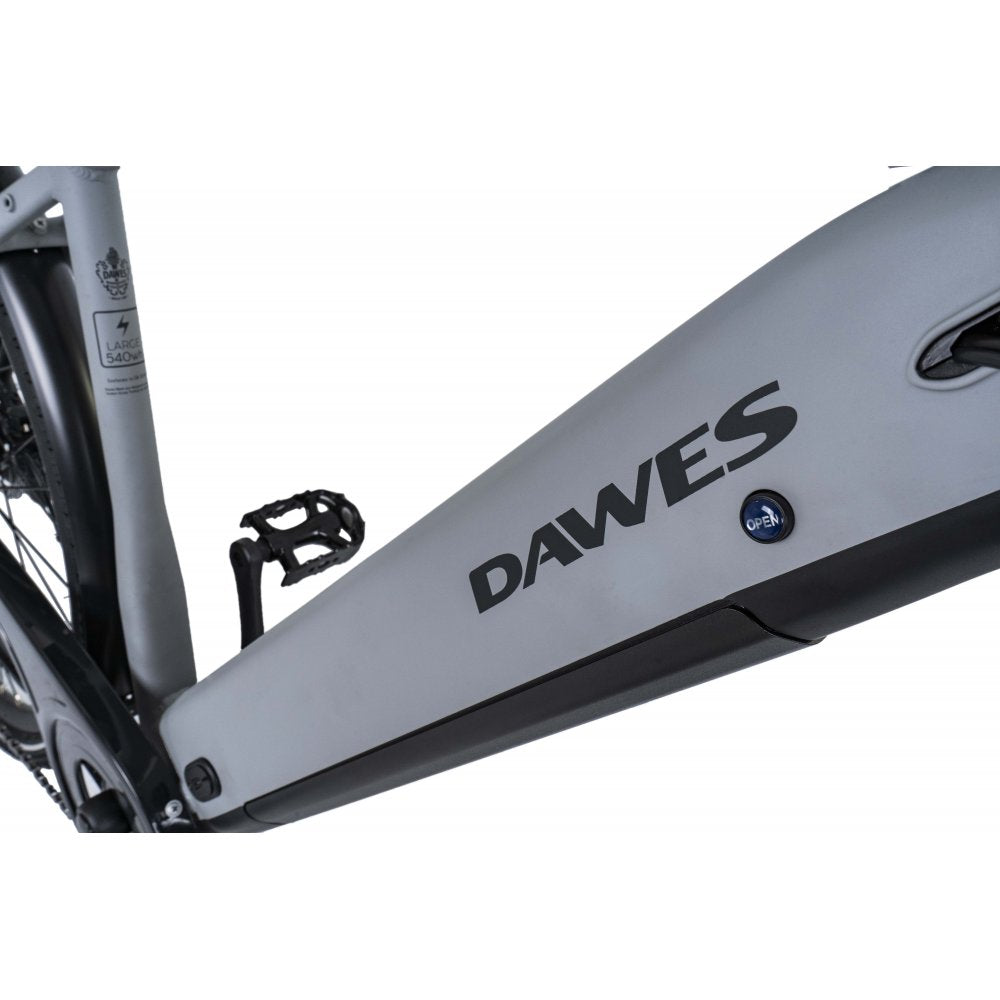

| Battery | 36V 15Ah, 540Wh, Samsung cells, Integrated, Removable |
| Charger | 42V 2A, 3 pin UK plug |
| Display | Centre mounted LCD with remote, 5 modes, Walk assist, Battery Indicator, Speed, Average speed, Max speed, Odometer, Trip, Trip Time |

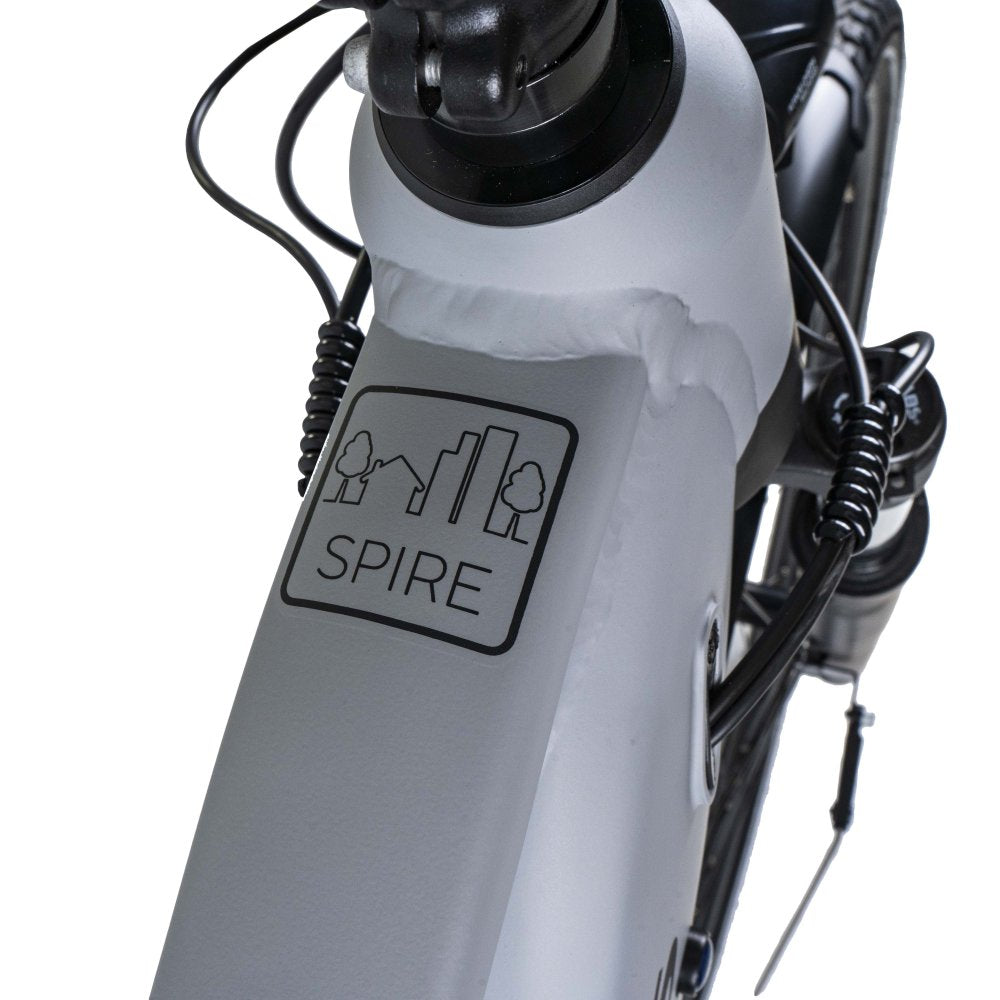

| Frame | 6061 aluminium crossbar frame, Internal cable routing, 700c wheels |
| Fork | 700c suspension fork, Hydraulic lockout, 70mm travel |
| Headset | Sealed bearings |
| Handlebar | Aluminium, 680mm wide, 15° backsweep |
| Stem | Adjustable, Aluminium, 90mm reach, 31.8mm |
| Grips | Ergonomic comfort, Lock on, Black |
| Gear Shifters | Shimano Alivio SL-M2010 Rapidfire Plus, 9 speed |

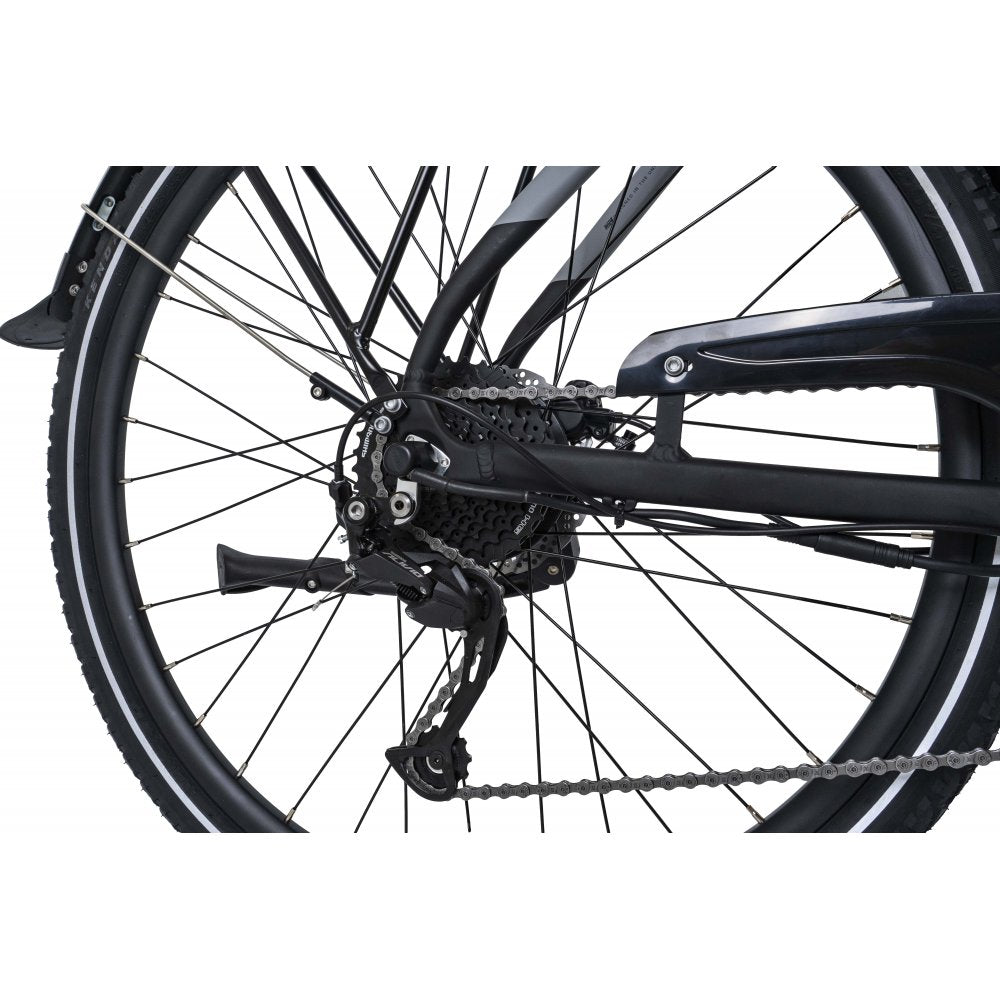

| Rear Derailleur | Shimano Alivio RD-M3100 Shadow, 9 speed |
| Chain | KMC X9, 9 speed |
| Cassette/Freewheel | Shimano Altus CS-HG201, 11-36T, 9 speed |
| Chainset | Aluminium, 38T, 170mm |
| Number of Gears | 9 |
| Bottom Bracket | Square taper, Sealed |
| Pedals | Alloy platform style, Black |
| Brakes | Tektro hydraulic disc brakes, 180mm rotor (front), 160mm rotor (rear) |
| Front Hub | Alloy with quick release, 36 hole |
| Rims | 29" double wall alloy, 36 hole |
| Tyres | Kenda, 700x45c, Puncture protection, Reflective sidewall |
| Saddle | Selle Royal Freeway |
| Seat Post | Aluminium, 350mm, 30.4mm |

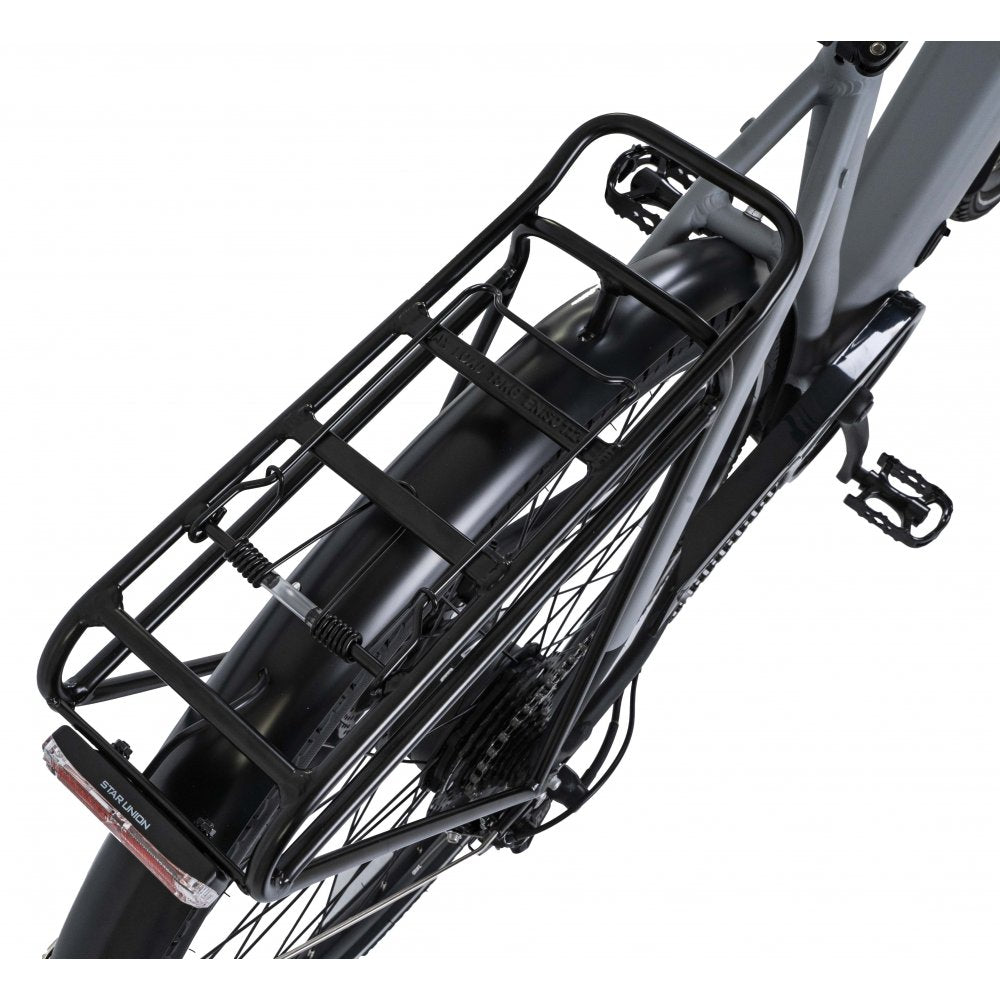

| Rack | Aluminium with rear light mounted |
| Kickstand | Chainstay mounted, Aluminium |
| Mudguards | Full length, 56mm wide, Black |
The Dawes Spire 2.0 Crossbar Electric Hybrid Bike is an ideal choice for those looking for a versatile, powerful, and comfortable e-bike. Its robust construction, reliable components, and advanced motor and battery system ensure a smooth and enjoyable ride on various terrains.
